precision plastic beauty instrument mold

TAIWAN technology professional make precision plastic beauty instrument mold.

This product made by our company has 5 sets of precision plastic molds.

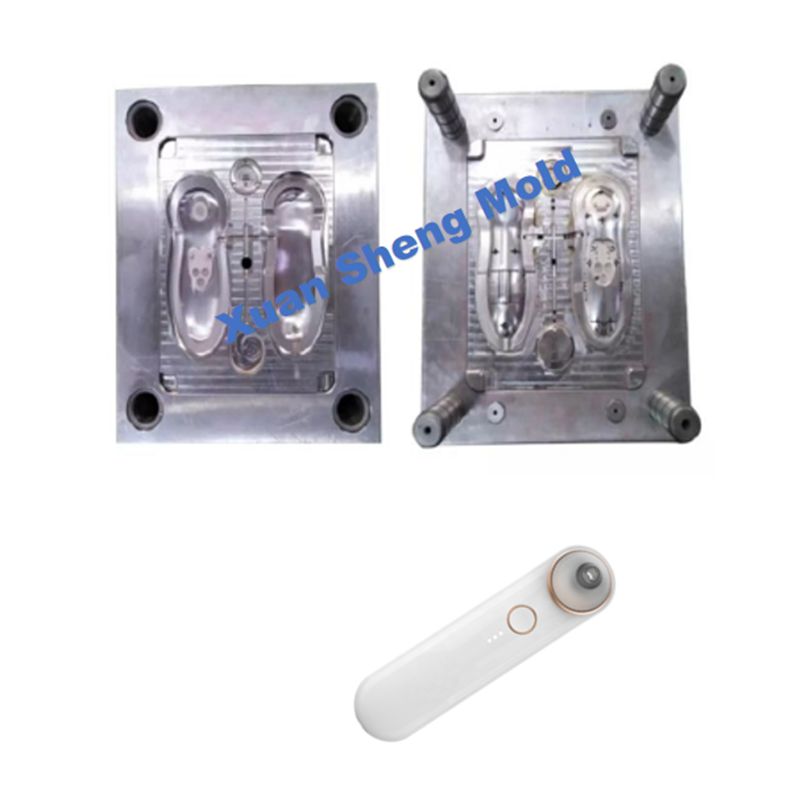

Let me introduce the housing of this kind of beauty instrument.

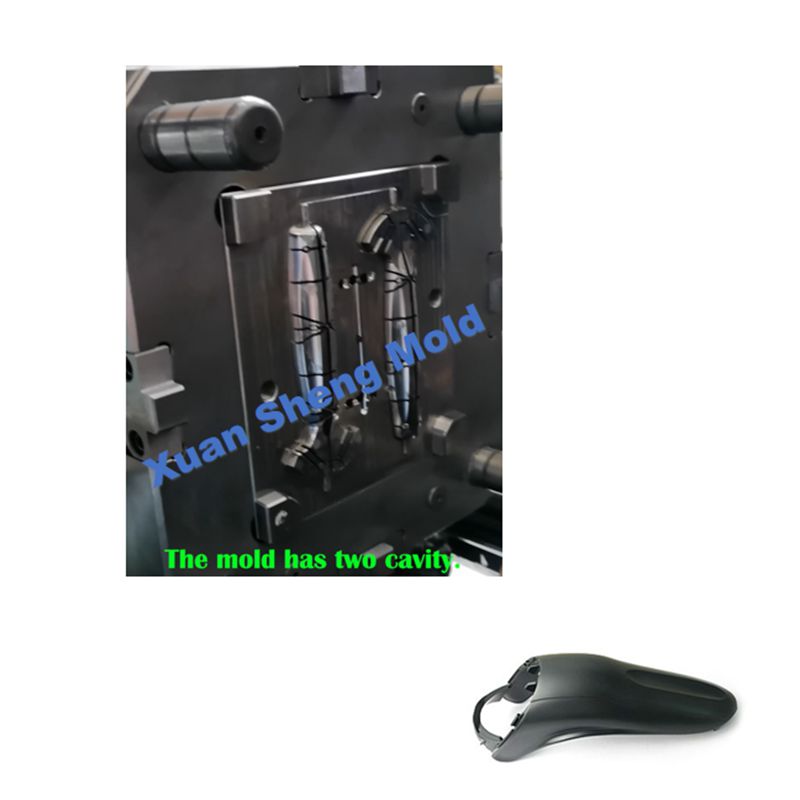

The housing material is ABS. Its mold cavity is 1+1,cold runner precision plastic mold. This mold feeding type is sub-gate.

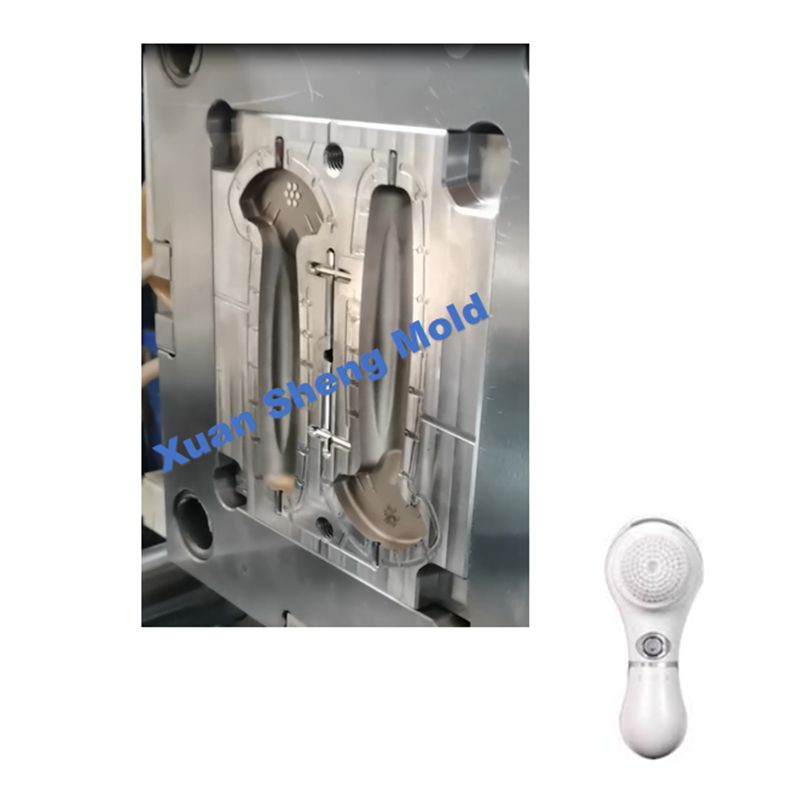

There are many ribs in the core, so we need to exhaust to prevent the product from burning. The precision plastic mold cavity

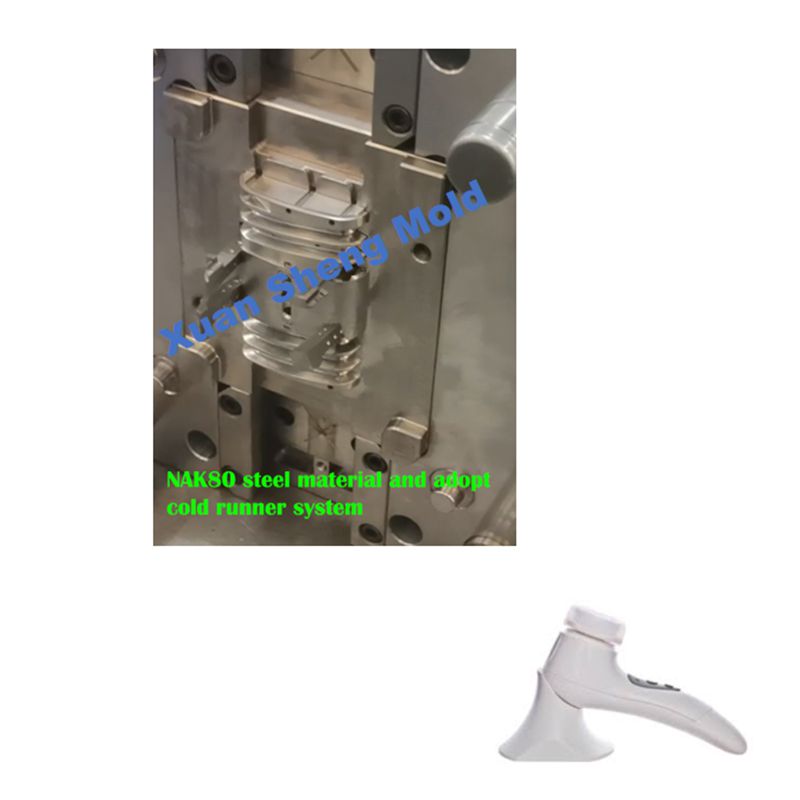

surface is texture. The mold cavity and core material is NAK80. The mold size is 300*350*380 mm, and its weight is 320 KG.

The upper and lower shells of the product will recommend adding the US grooves on the product when the product is designed,

so as to avoid scrapers during assembly.

We will also consider the problem of the thickness of the product tendon to see if it will affect the shrinkage of the product surface.

Our company can provide ODM & OEM for this kind of product.

Hope to cooperation with you.

Thank you.
