Motor stator and rotor cover precision mold
| Product Name | Motor stator and rotor cover precision mold |
| Mold Base | S136,8407,1.2311,SKD61 etc. |
| Cavity | 1*4 |
| Runner | Hot runner |
| Mold Base Brand | LKM, HAS CO, DME, self-control etc |
| Mold Life | 500,000 shots |
| Plastic Material | PBT+PC+GF30 |
| Mold package | Wooden box |
| Tolerance | 0.02 mm |
Motor stator and rotor cover precision mold

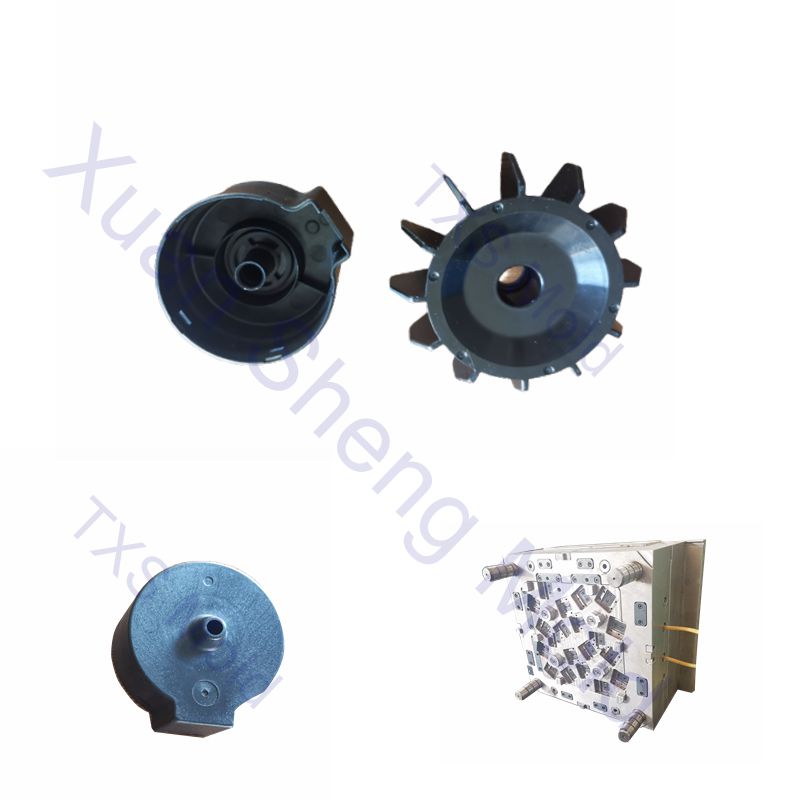

We have done the motor stator and rotor cover precision mold.
This motor stator and rotor cover material is PBT+PC+GF30 and its size is 56.4*46.7*43.5 mm.

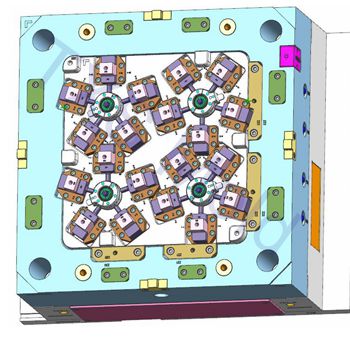

This precision mold material is S136 and four cavities. The precision mold has four
hot runner system with needle valve nozzle. Its brand is YUDO.
The size of the precision mold is 600*500*540 mm and its weight is 820 kg.
This precision mold has twenty sliders. So this precision mold parts should be matched very
smoothly.
Our company has precision mold processing equipments and world-class measuring equipment.
We need to measure every part of this precision mold to ensure the dimension OK.
We also should do the mold flow analysis of each product.
Welcome your inquiry.
Thank you.
