Aroma diffuser PBT injection molding precision mould tools

              Aroma diffuser PBT injection molding precision mould tools

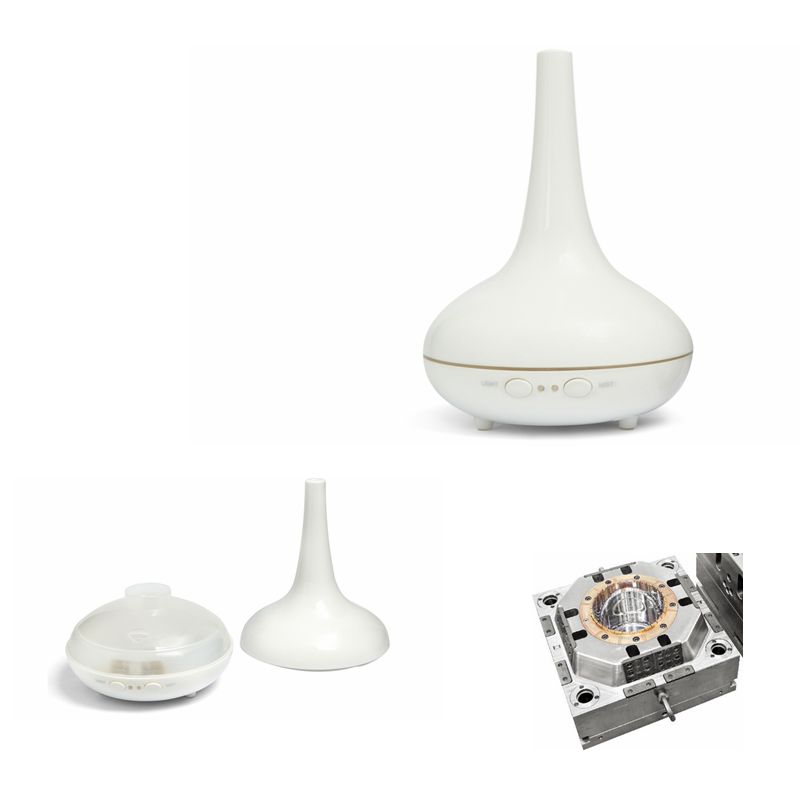

Aroma Diffuser is more and more applied. Its working principle is:

After the high-frequency shocks occurred by the ultrasonic shock equipment, the water

molecules and dissolved plant essential oils are decomposed into nano-grade cold mist

with a diameter of 0.1-5 microns in the air.

The application of the aromatherapy machine has a variety of ways to lit with water and

pure plants, so that the living room adheres to the higher humidity, and a certain number

of natural negative oxygen ions will occur. Waiting for the disease.

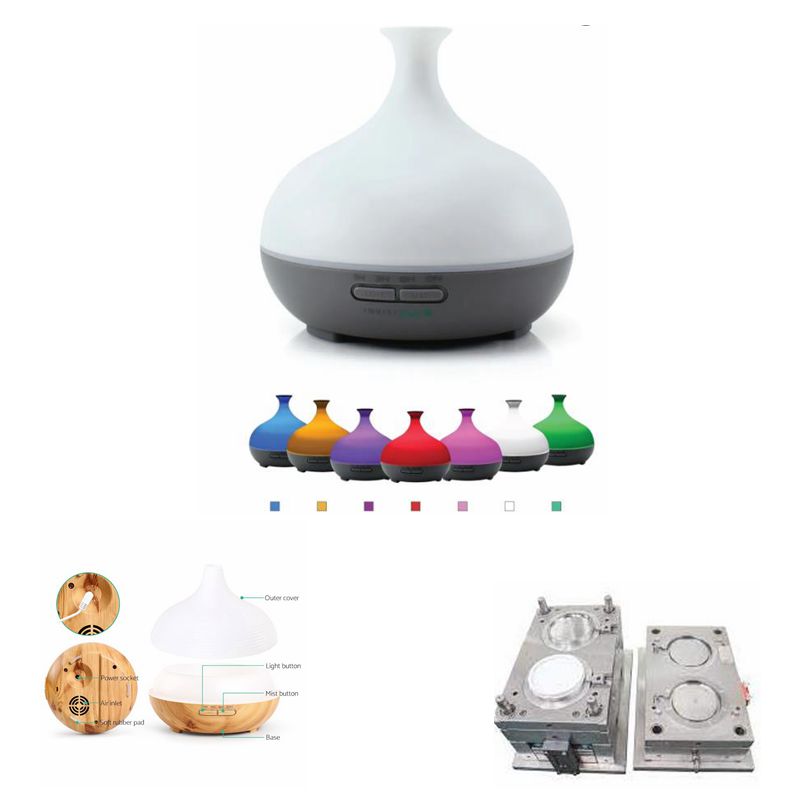

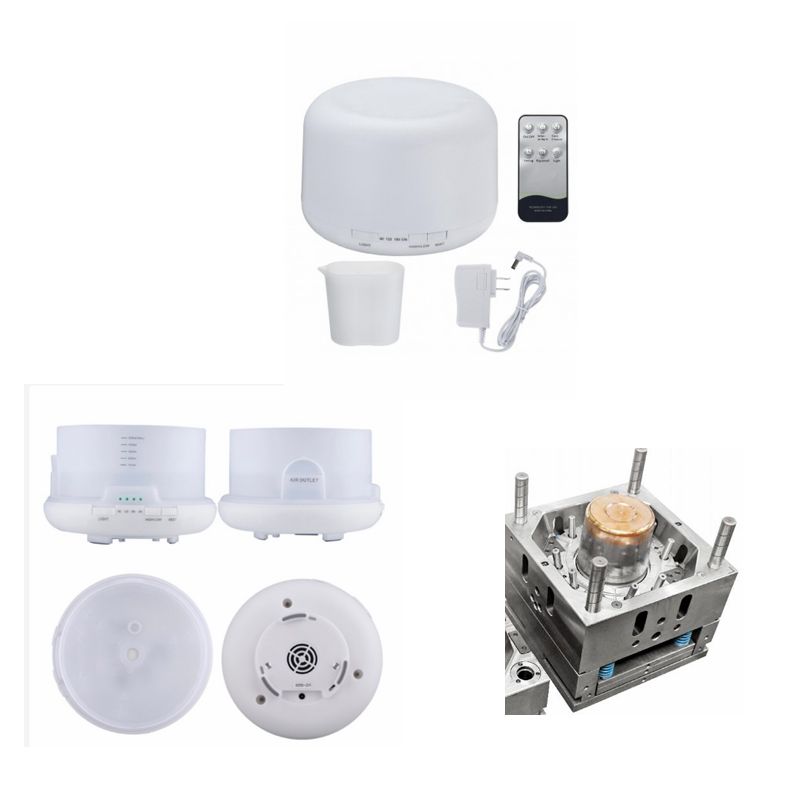

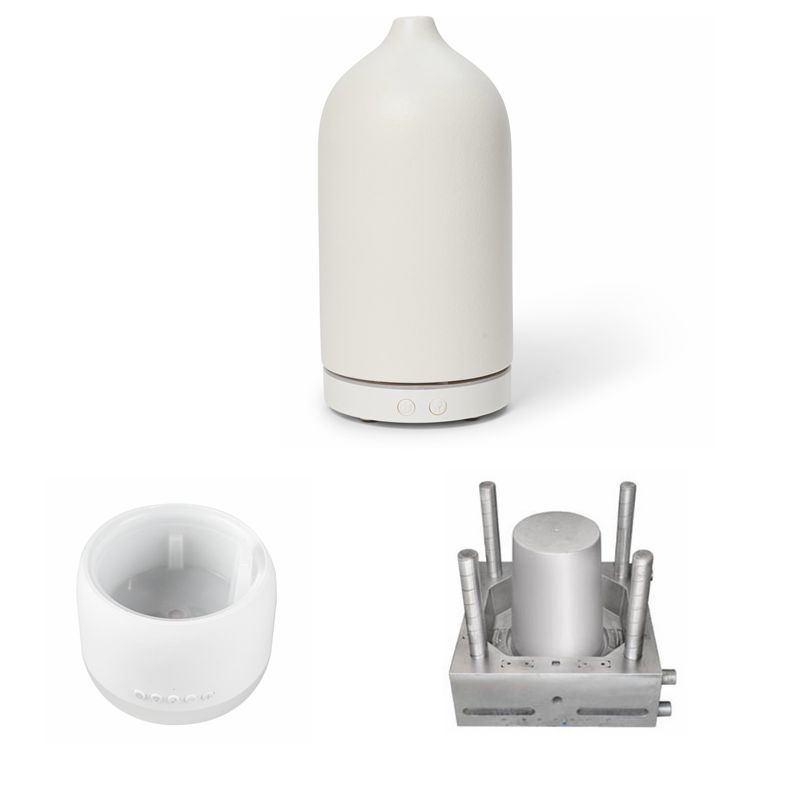

This product made by our company is mainly composed of 12 plastic parts. It has 8 sets

of precision mould tools.

I will introduce the base precision mould tools here.

This base parts material is PBT, and its surface is texture. Its size is D286.4*45 mm, and its weight is 225.4g.

Its precision mould tools size is 550*450*485 mm, and its weight is 685 kg.

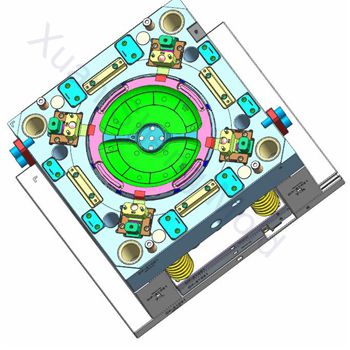

This precision mould tools has one cavity and four sliders, four lifters. Because there are many ribs on this precision

mould tools core, we design many precision inserts in the core. So that it is convenient for mould processing and mould vents.

Because the perfume is corrosive, the plastic parts of the product use the material of PBT.

This material has corrosion resistance, but this material is easy to deform. It is difficult to do the PBT injection molding

So we do the mold analysis for each product before mold design to reduce the questions which occur during

PBT injection molding.

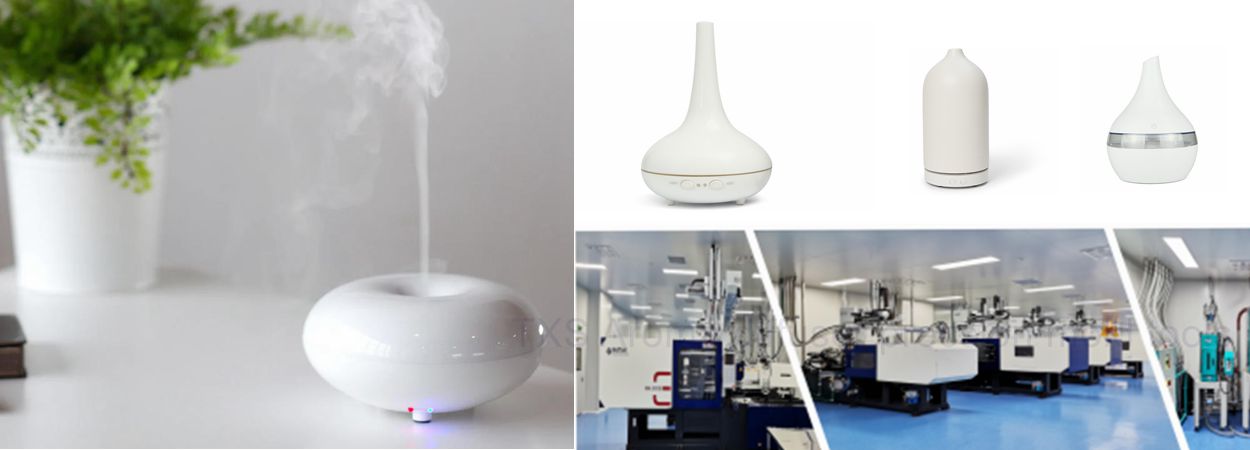

We have world-class brand mold processing and measuring equipments. We can provide ODM/OEM service to you.

Welcome your inquiry.

Thank you.
