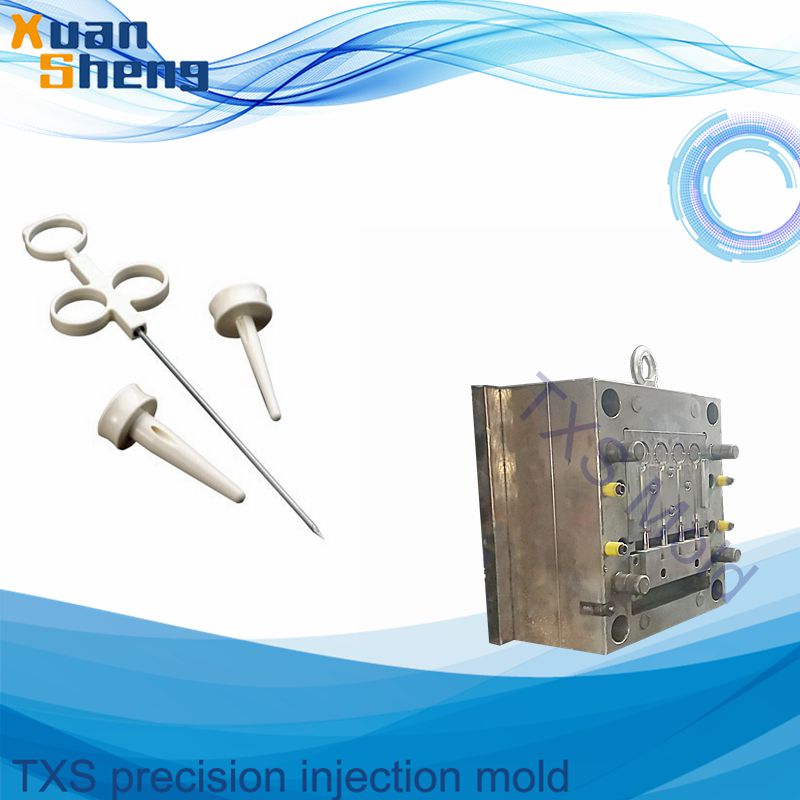

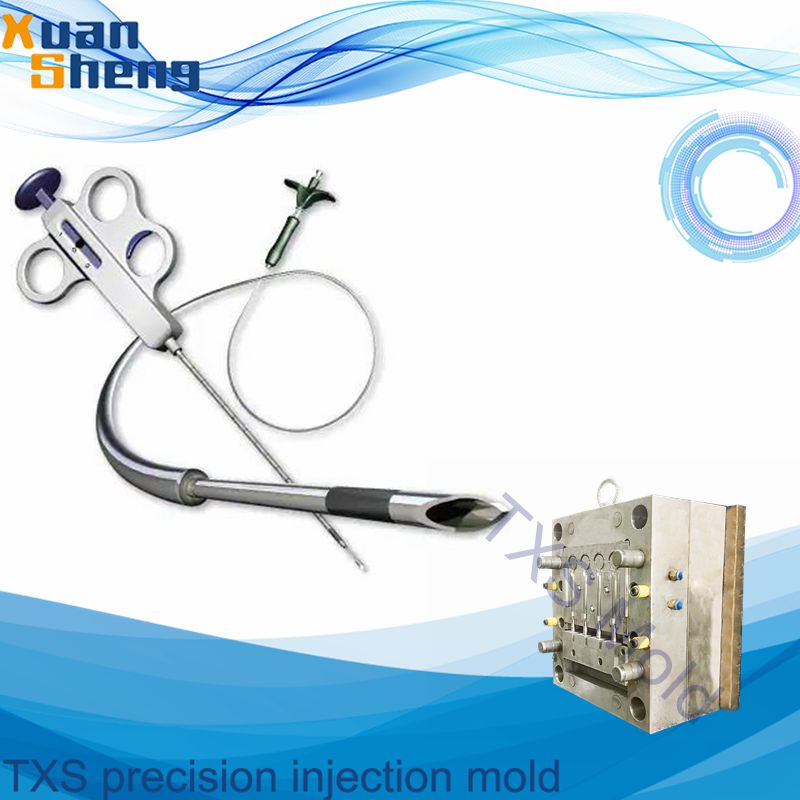

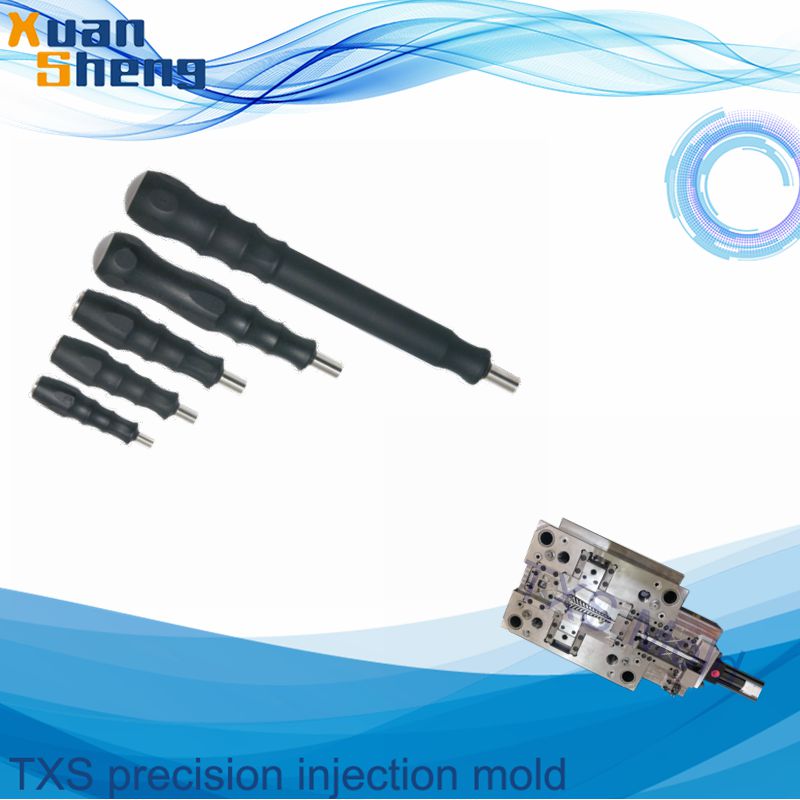

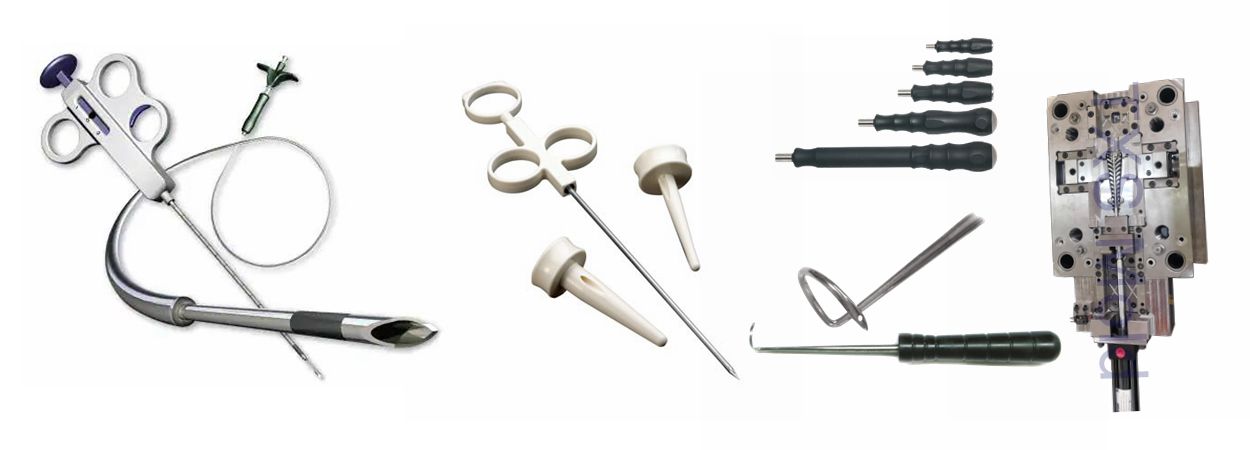

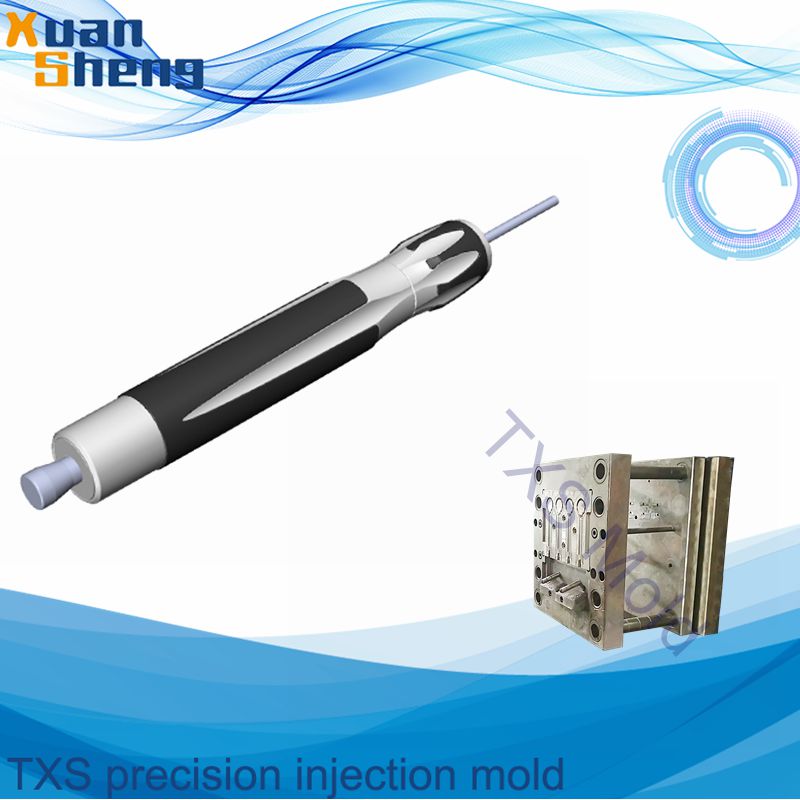

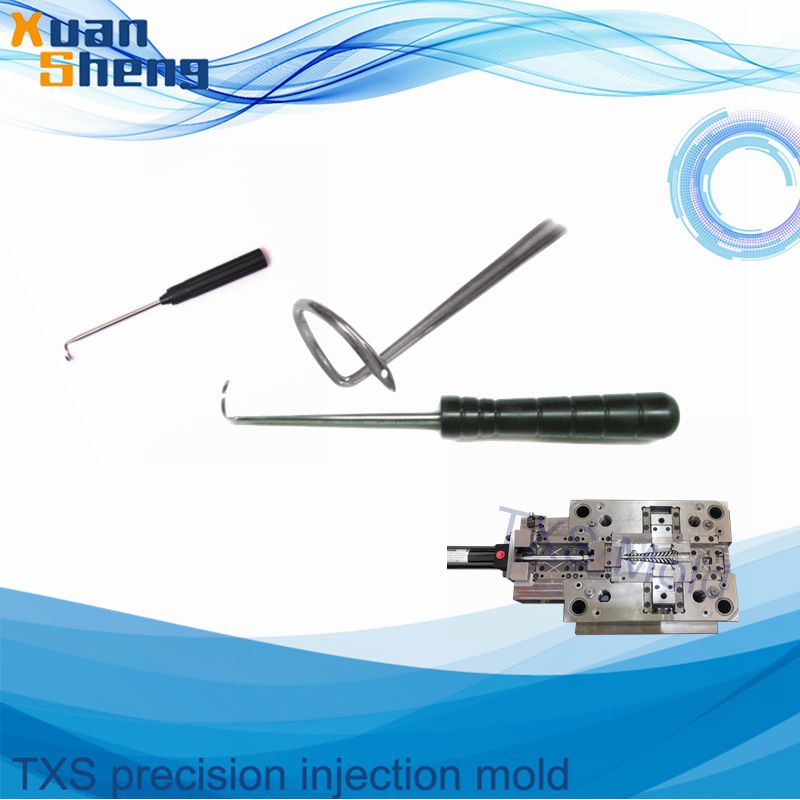

We have made many kinds of plastic medical handle over molds and done

insert molding of this type.

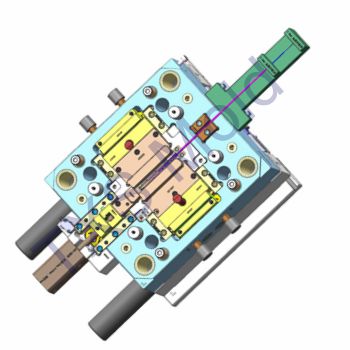

This medical handle over mold has three precision mold sliders. Because one

of them has large stoke, so this mold slider driven by oil cyclinder.

The material of the product is PC, and the over mold material is NAK80.

The size of this over mold is 350*710*430 mm, and its weight is 328 kg.

During insert molding, we should put the long pin into the over mold first.

We should consider that this long pin positioning and fixing during insert molding.

Of course, we also need to consider that the product is easy to

grab out after the insert molding.

Welcome your inquiry.

Thank you.
