Automotive stator rotor over mold insert molding

         Automotive stator rotor over mold insert molding

In automotive industry, stator rotor are widely application in the motor of automotive window lifter,

wiper, and other motor parts. Xuansheng technology processing several stator rotors over mold

and insert molding for AUDI parts.

Let me introduce this precision auto stator rotor over mold now.

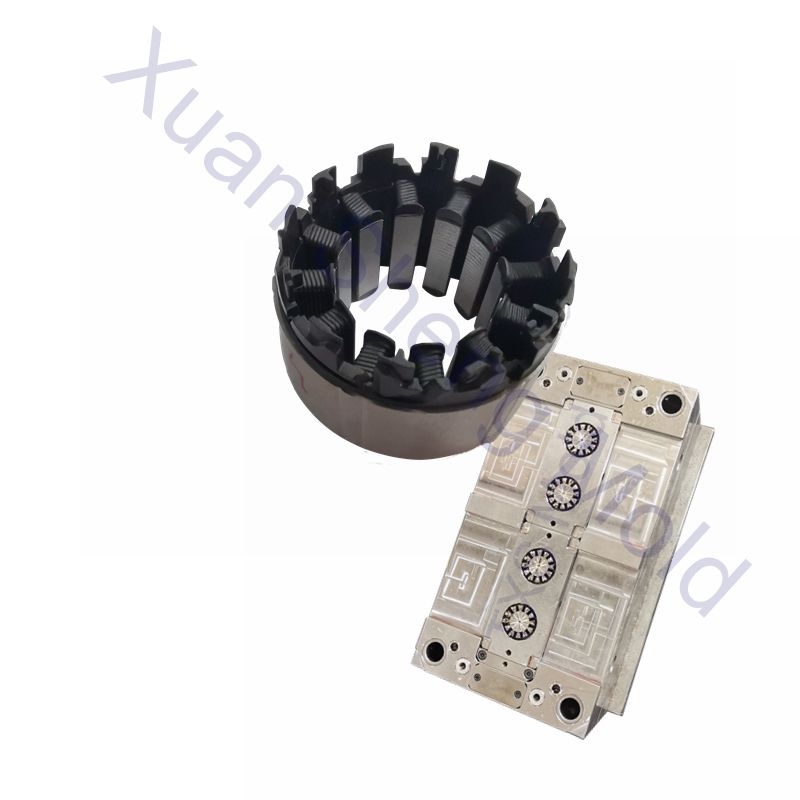

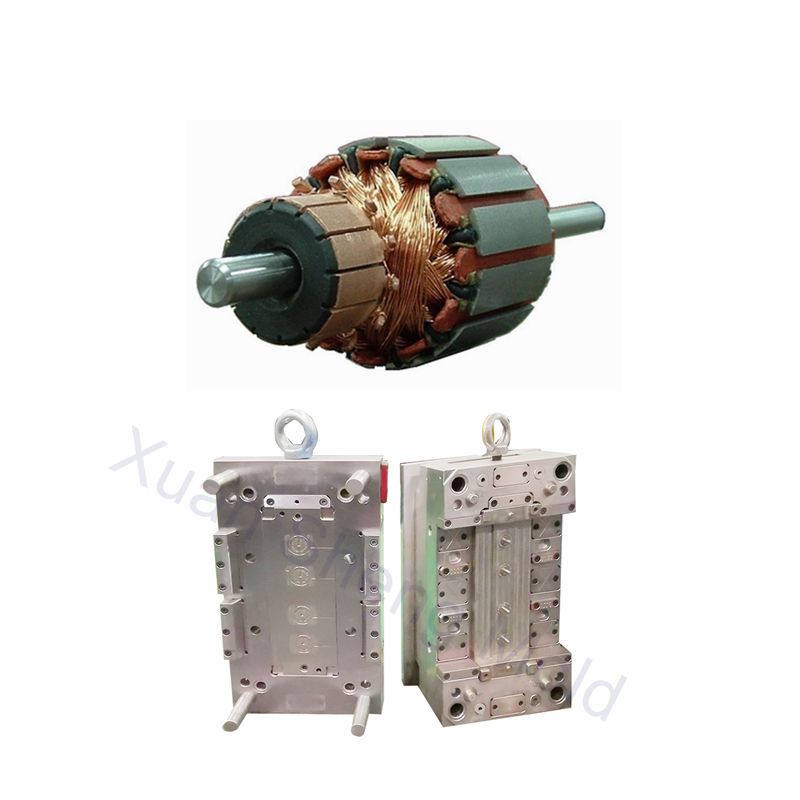

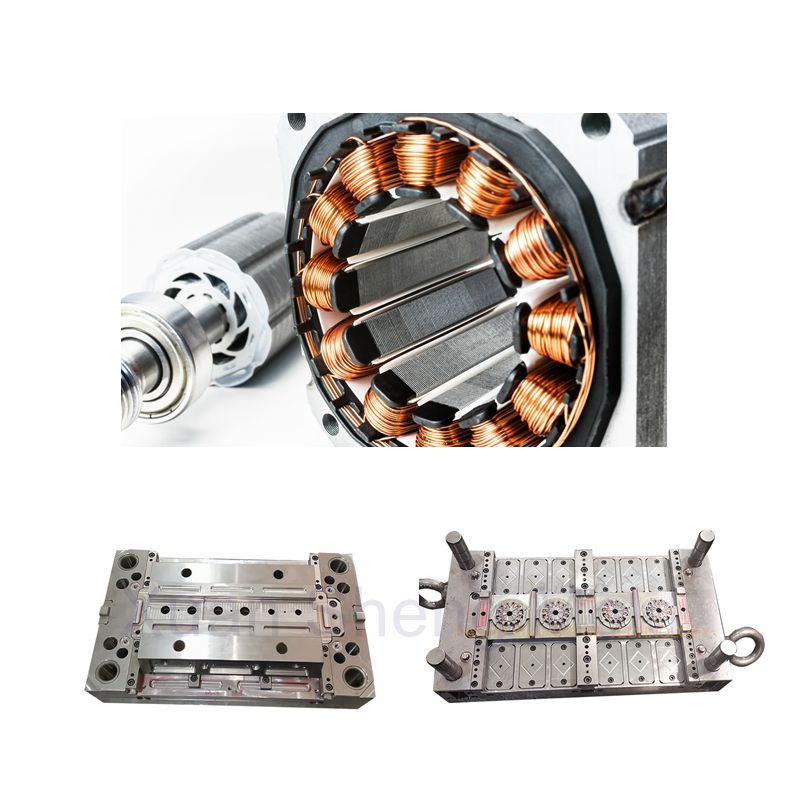

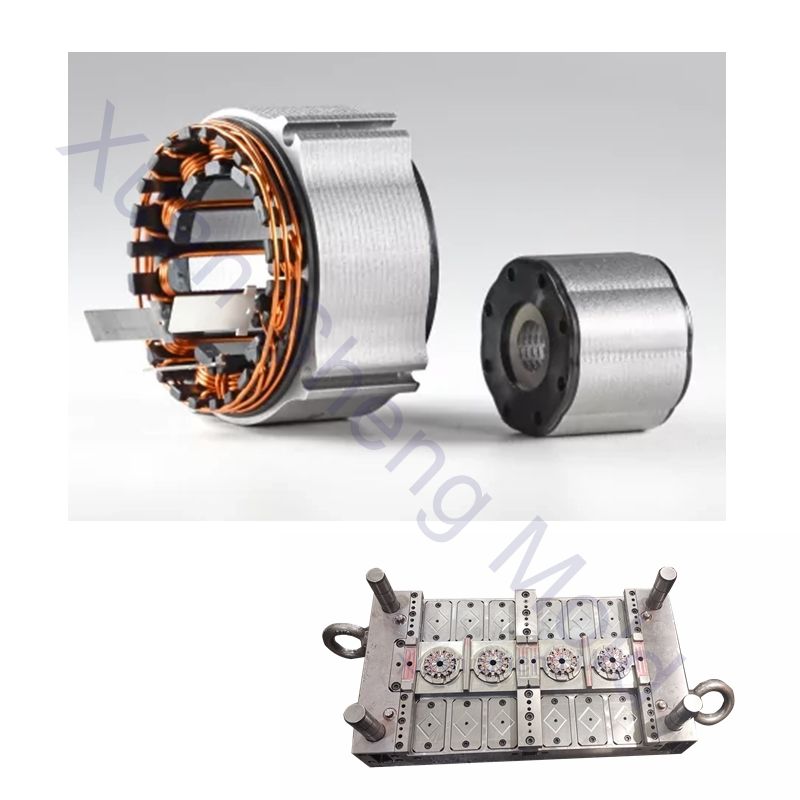

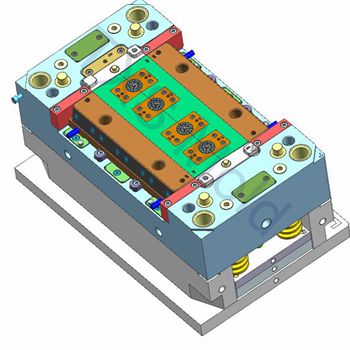

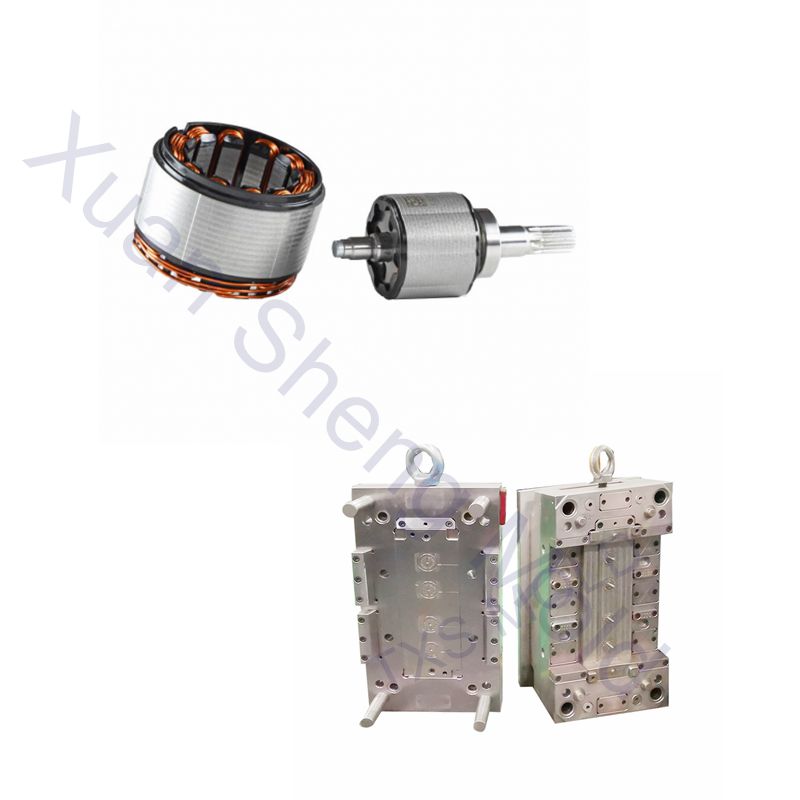

This precision auto stator rotor over mold has 4 cavities, and two large sliders.

This over mold size is 370*550*496 mm, and its weight is 560 kg.

The auto stator rotor product material is PA66+GF25, and its over mold material is SKD61.

When does the auto stator rotor over mold insert molding, we should set the silicon steel insert

into the over mold first.

In order to ensure the quality of the product, this set of over mold must be well matched with all

silicon steel inserts. Otherwise, the risk of compressive over mold or products will produce flash.

Our company has precision mold processing equipments and world-class brand measuring equipments.

Hope to cooperation with you.

Thank you.
