urine container mould

Taiwan's technology plastic urine container mould mold and precision mould tools

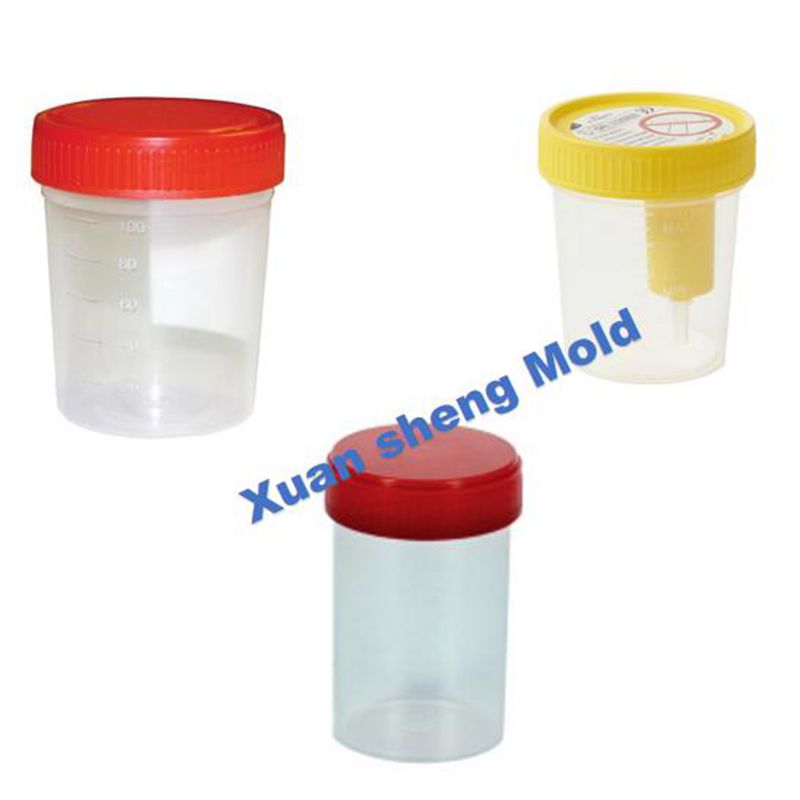

The urine container is made of two parts, the urine container and the urine cap.

Our company has made two parts mold already. They are both precision mould tools.It is for 120ml urine container.

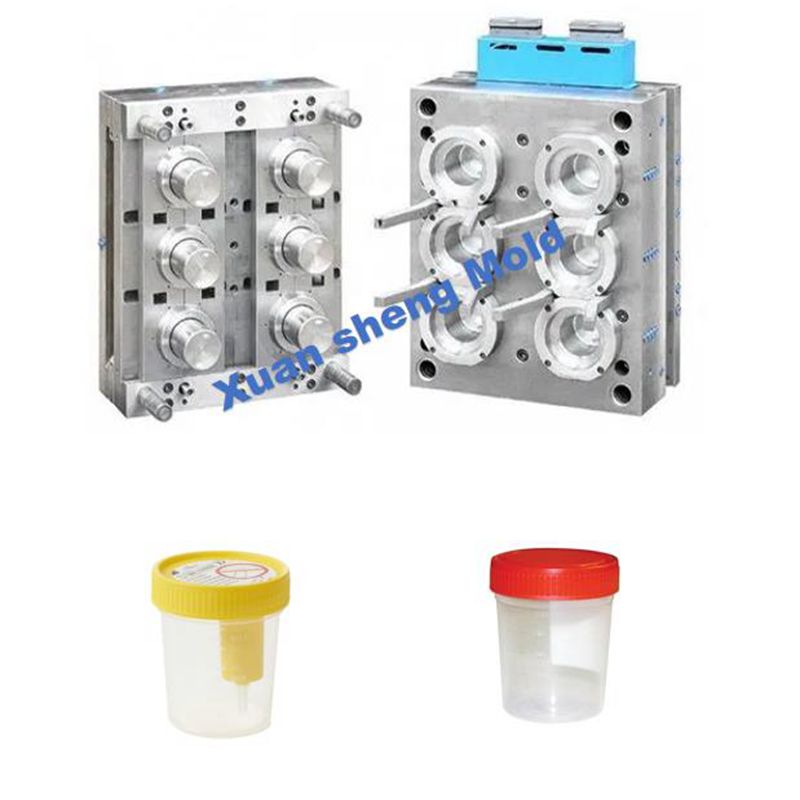

The urine container mould has 6 cavities and its mold core material is S136. This material has better polishing properties.

The mold has hot runner system and its brand is YUDO. The feeding gate is needle point. There are 6 needle points.

The mold size is 400*650*580 mm, and its weight is 680KG. It is suitable for production on a 280T injection molding machine.

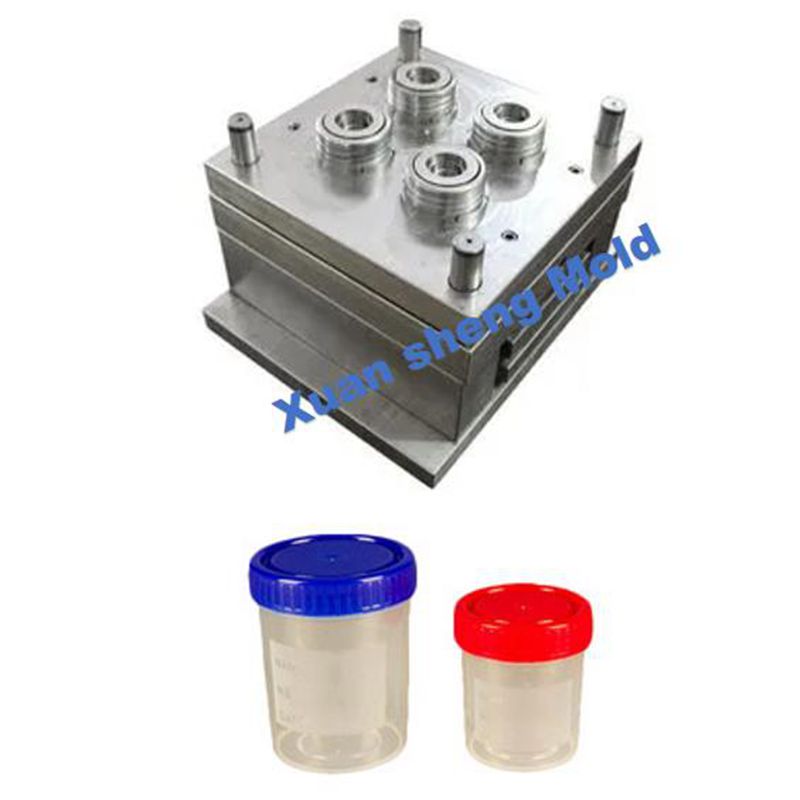

The urine cap mold has 4 cavities and its mold material is S136 too. The mold also has hot runner system, but it is only two open points.

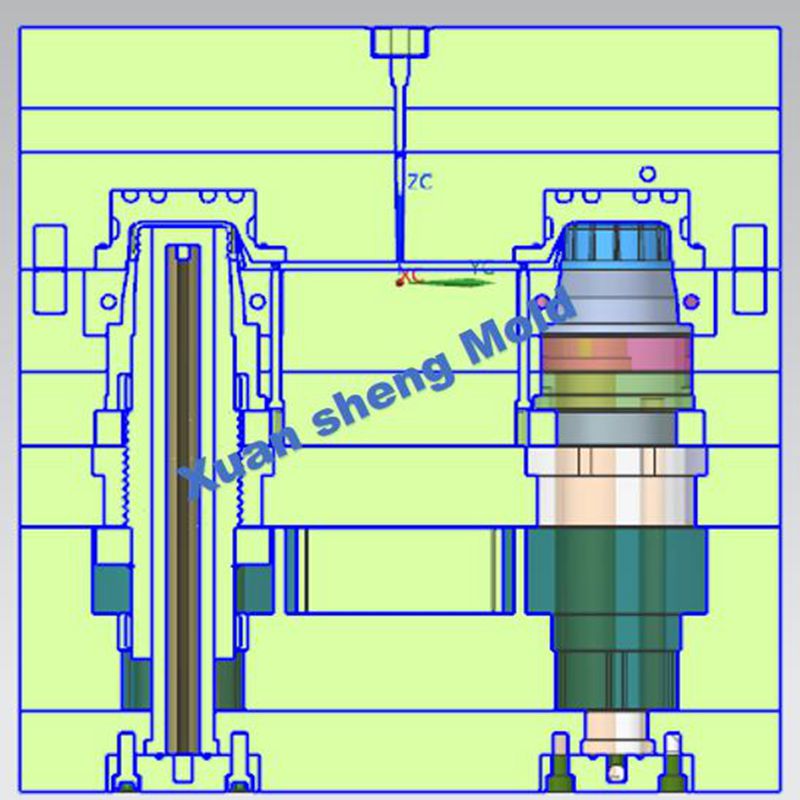

The product adopts the submerged gate method of transferring the hot runner to the cold runner.

The mold size is 400*500*530 and its weight is 530 kg. It is suitable for production on a 200T injection molding machine.

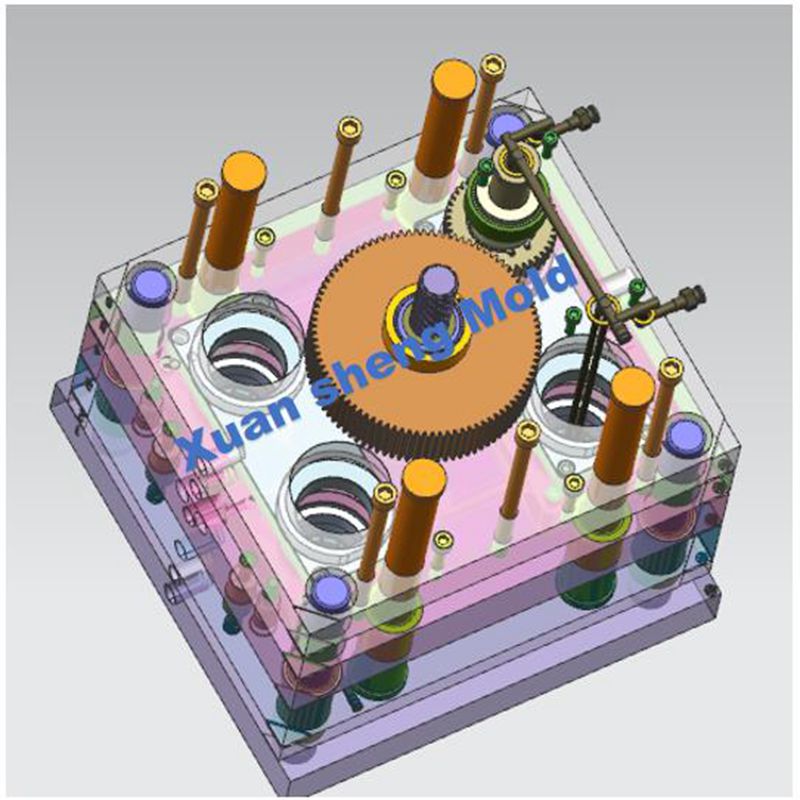

The mold has the threaded mechanism of the cylinder actuating the motor.
