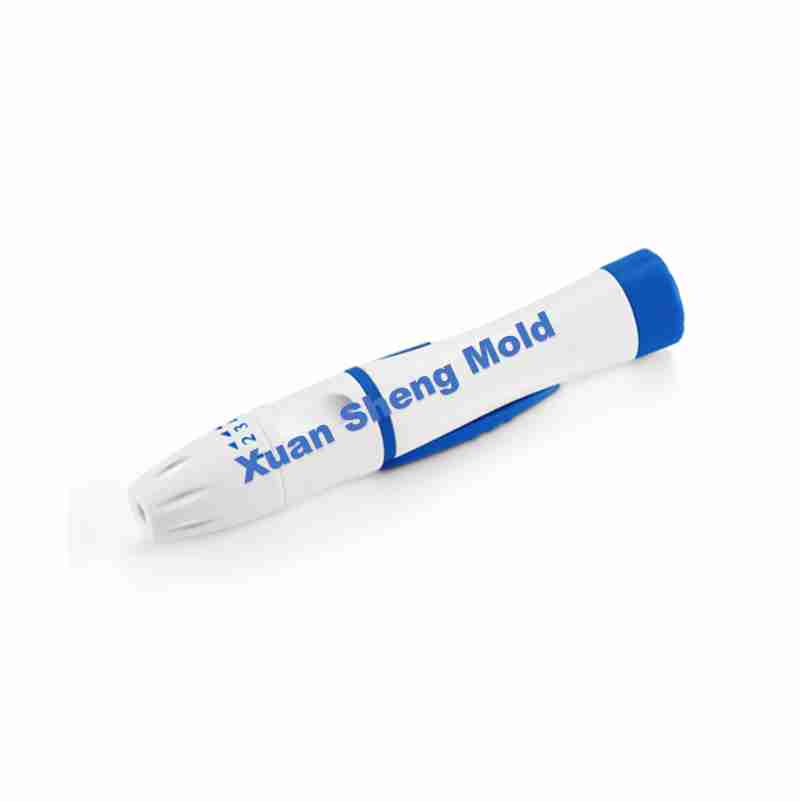

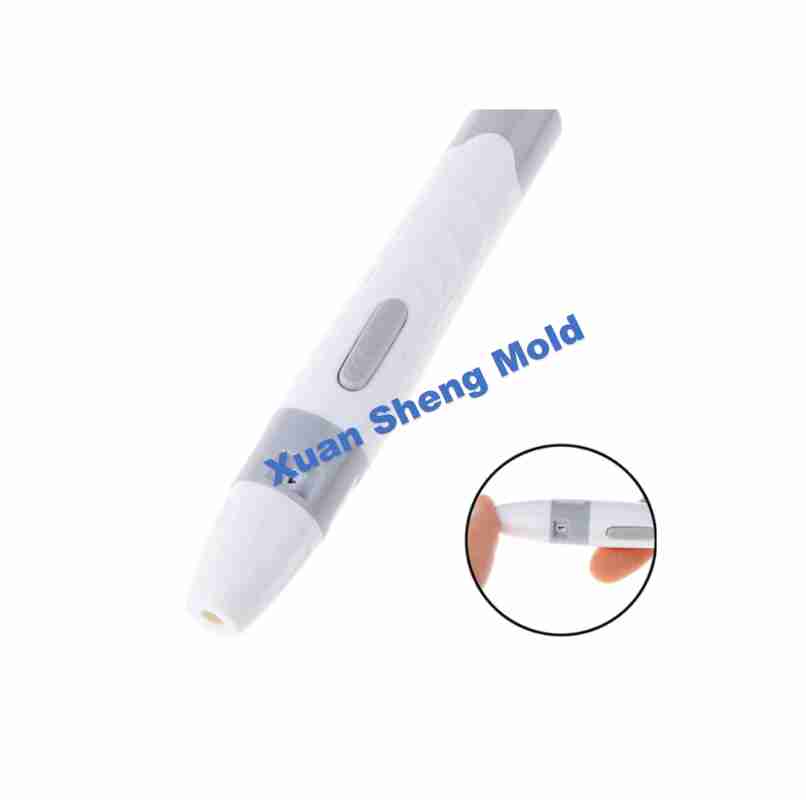

lancing device medical mold

We have made the lancing device medical mold of medical product mould.This product.This product is composed of 7 parts, so there are 7 sets of molds. Each set of molds is multi-cavity.

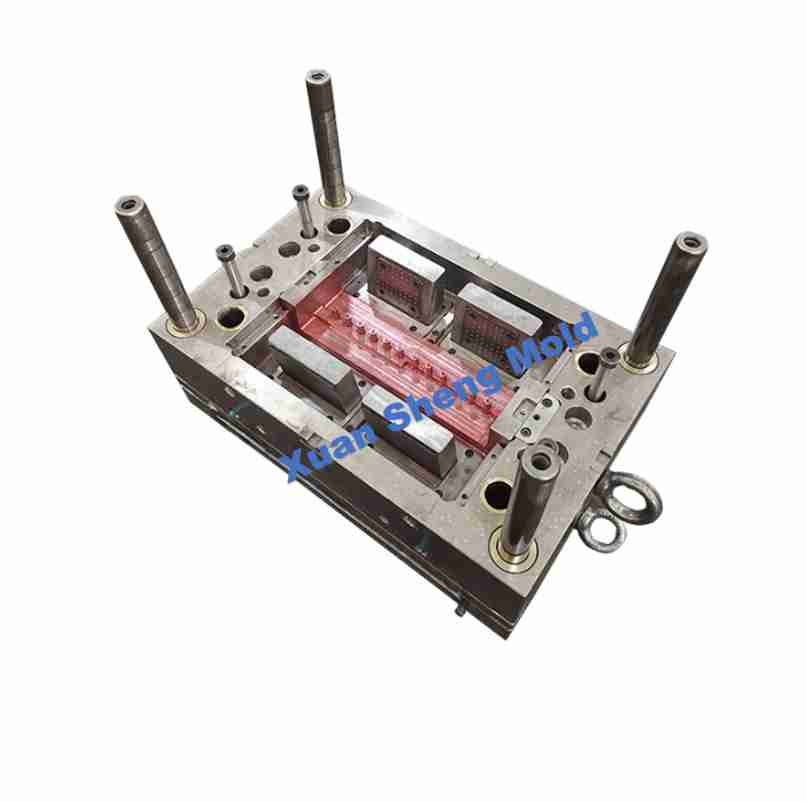

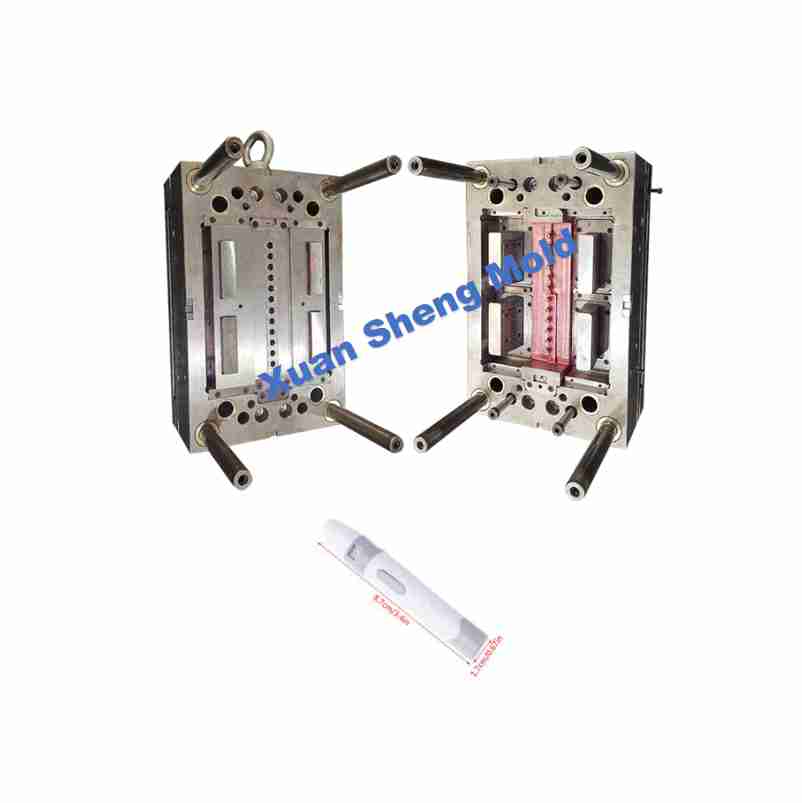

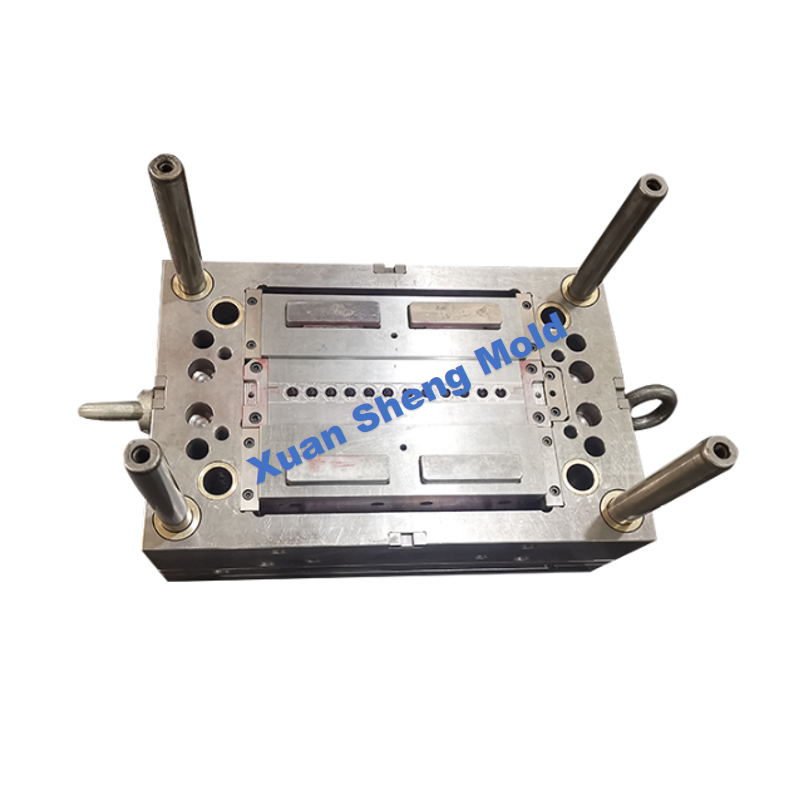

This set of molds is a plastic medical lancet shell mold.It is a three-plate mould and has twelve cavities and two sliders.The insert material is S136.The mold size is 450*550*486mm and its weight is 562KG.

The key point of the mold processing of this product is to ensure that the needle insert part of the mold can be eccentric. Once the product appears, there will be uneven meat thickness.

The second thing is to ensure the balance of the feed point. If the feed is unbalanced, the product will appear full and uneven. This brings trouble to injection molding.

This product is mainly composed of 7 parts, and our company has made all 7 sets of molds. The names of the product parts are the back pull cap, penholder, adjustment cap, back pull rod, buttons, etc.

Looking foward to providing you with better service.
