plastic handle injection mould

Taiwan's technology make precision plastic handle injection mould and plastic injection molding

We have made many kinds of plastic handle injection mould.

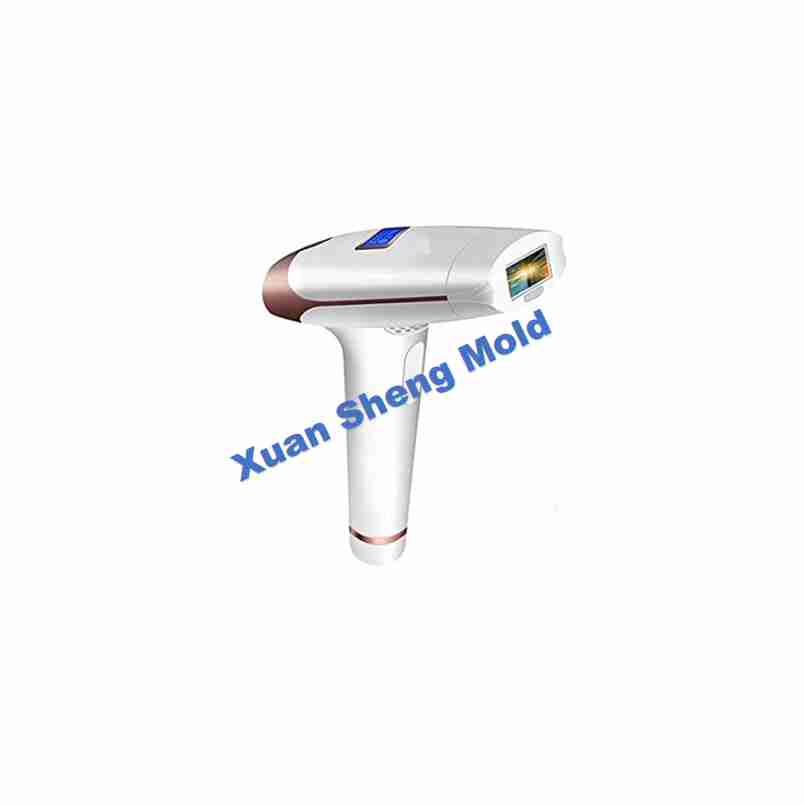

This is a laser instrument handle mold for women to remove wrinkles.

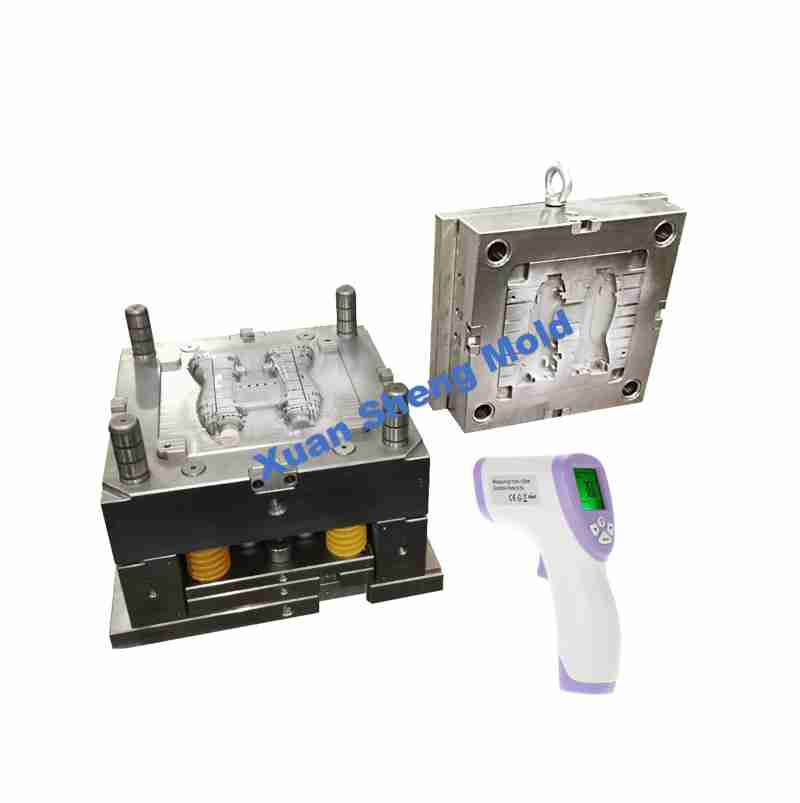

Our company has also made molds for BOSCH shells and thermometer shells.

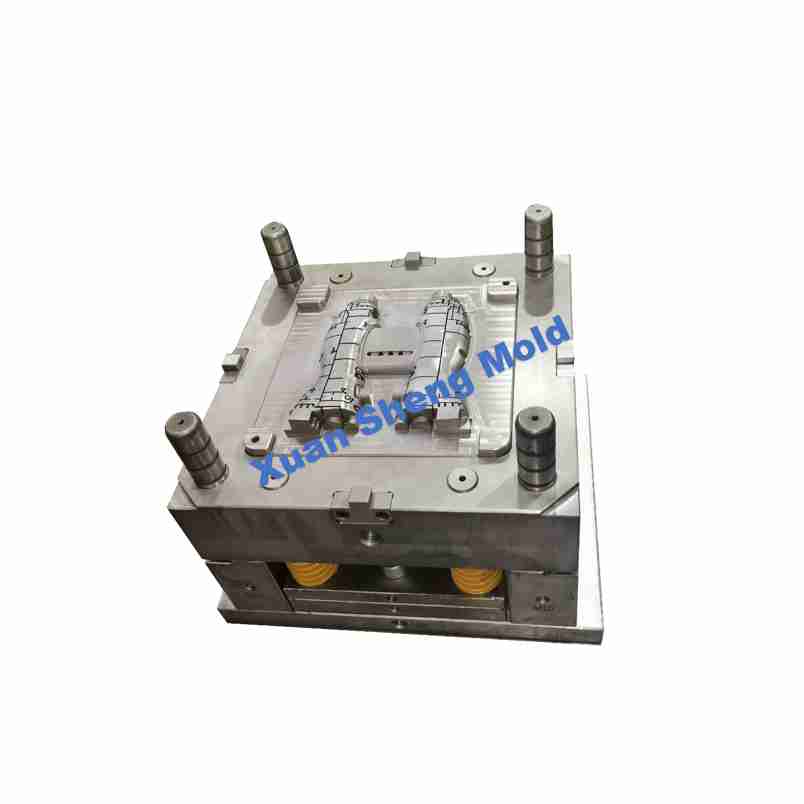

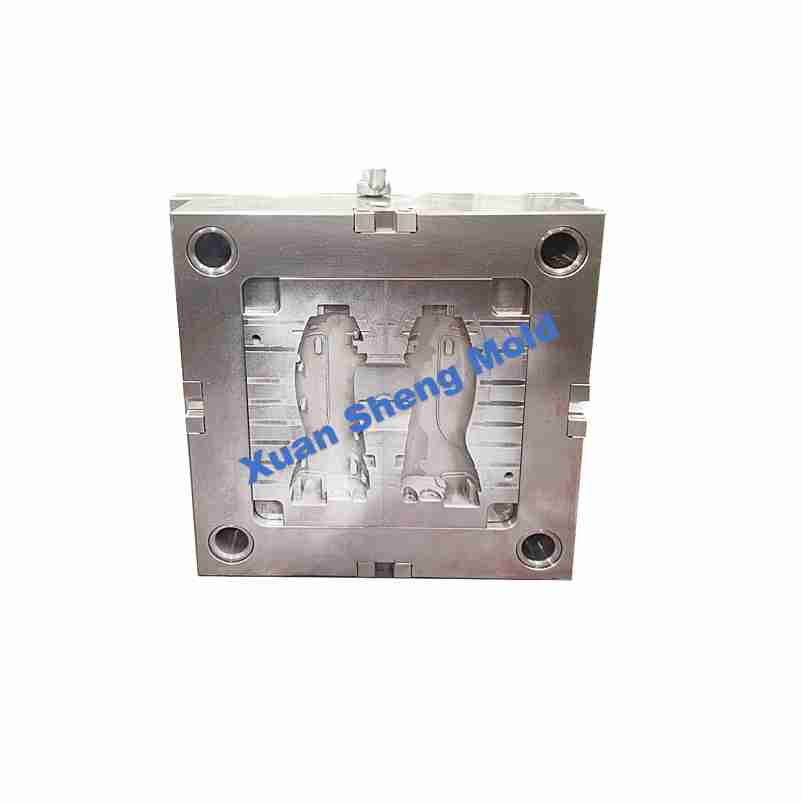

This mold size is 400*400*385mm and its weight is 384kg.It is a cold runner mold and has two cavities.

The place to pay attention to this type of mold is the appearance and assembly of the product.

The appearance of the product is generally a grained surface, and the surface of the mold must not be scratched;

the second is the assembly size, which must not be biased, otherwise it will affect the feel of the customer.

There are many ribs inside the product, so pay attention to the width and exhaust of the ribs.

Too wide ribs will cause sink marks on the surface of the product. If the ribs are not well exhausted,

it will cause material shortage or burnt. Therefore, inserts are usually made at the ribs.

This facilitates processing and mold exhaust.

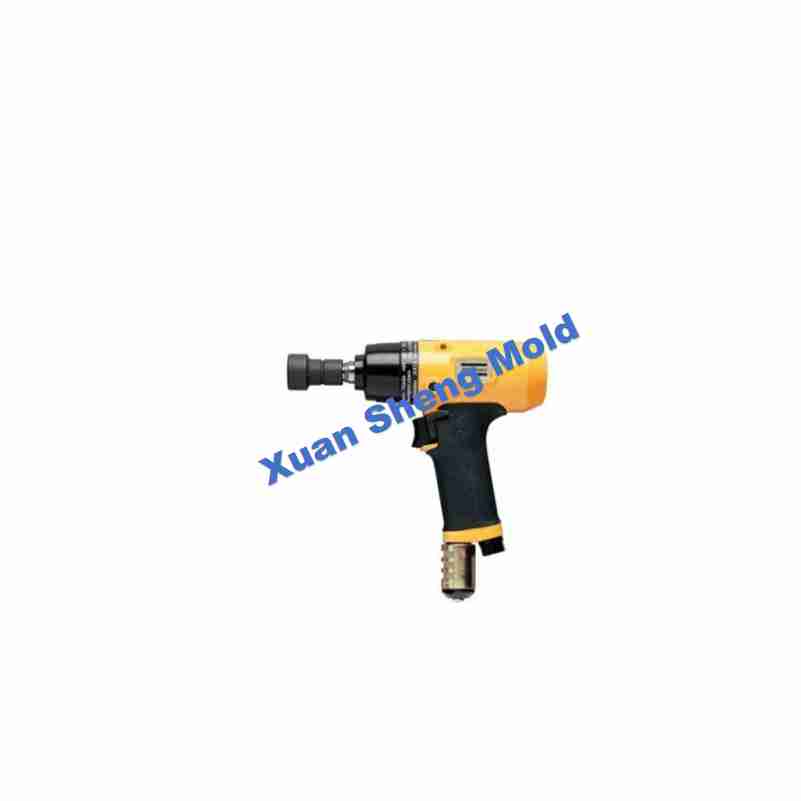

The handles of daily tools are covered with a layer of soft rubber. Our company generally does over molding.

Looking foward to providing you with better service !
