plastic electical switch part mold

Taiwan's technology make plastic electrical switch part mold of plastic injection mold

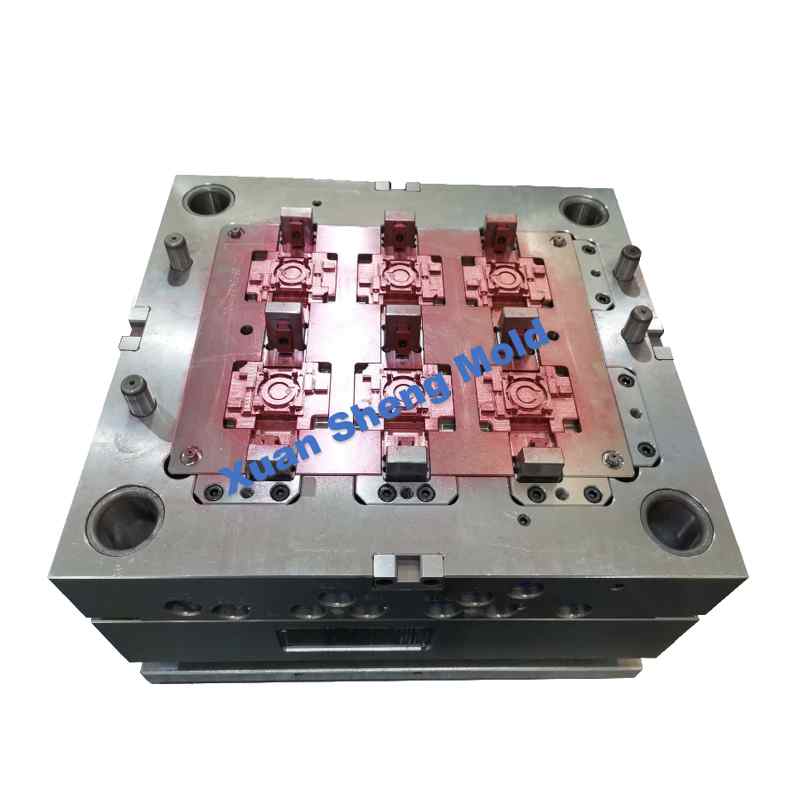

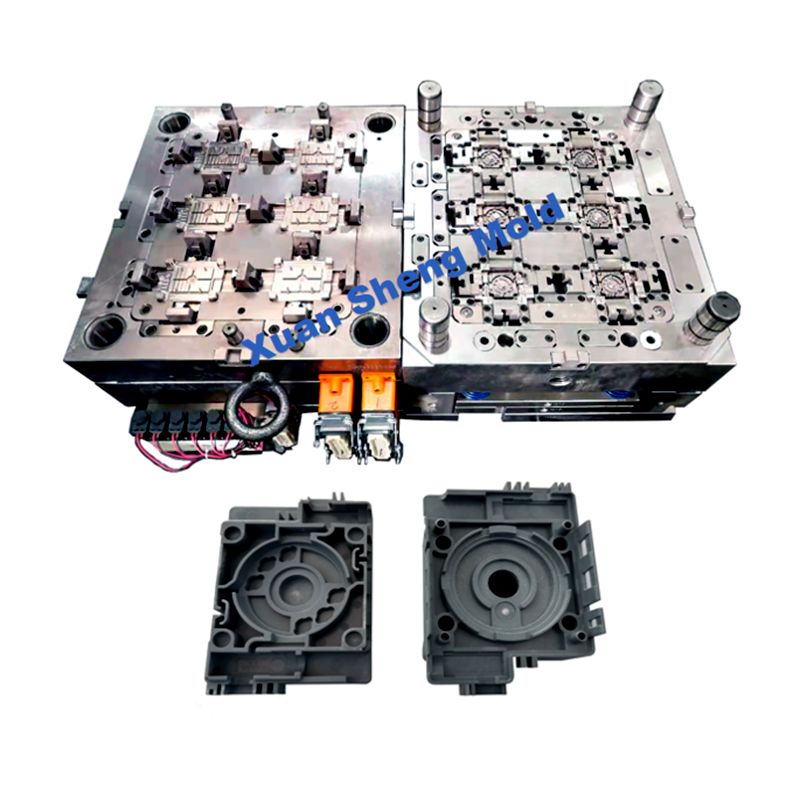

This is the plastic electical switch part injection mold.The mold has six needle valve type hot nozzles.

The size of the products produced by injection molding meets the high requirements of the drawings.

This mold size is 500*500*480 and its mold weight is 765KG.This mold has six cavities and twenty-four sliders.

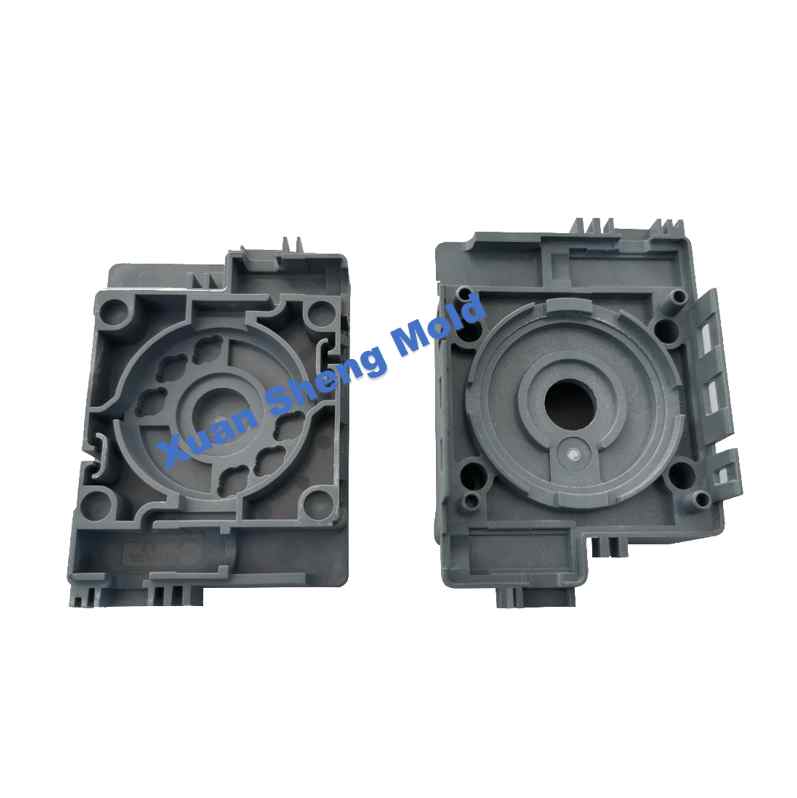

The plastic product material is PA66+GF30.The mold main material is H13 and the mold shorts can reach 500K~750K.

The mold has six hot needle valve points.

This type of mold requires very high precision, so the inserts of the mold are all processed by a grinder.

Therefore, the cost of this mold is very high.

The processing of such molds requires very high precision of the processing machine tools.

In addition to the high-speed CNC machining center, there are also mirror discharge machines,

slow wire cutting machines, and precision grinder processing equipment. In addition to these,

the most important thing is to have sophisticated testing equipment.

Of course, our company has all the above equipment.

Hope to provide you with better service.
