Ring code scanner precision plastic mold

         Ring code scanner precision plastic mold of precision mold

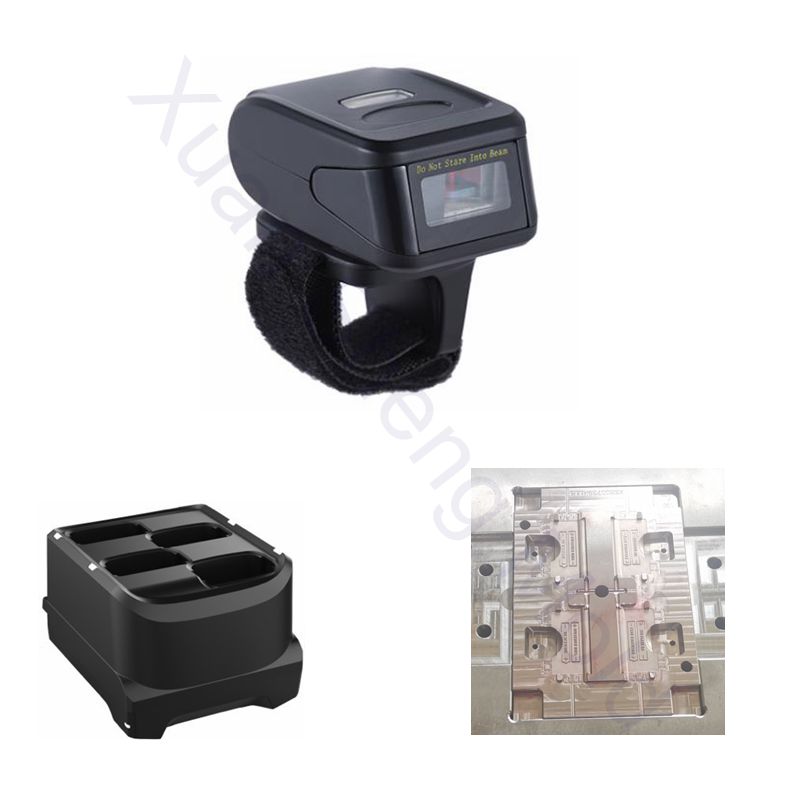

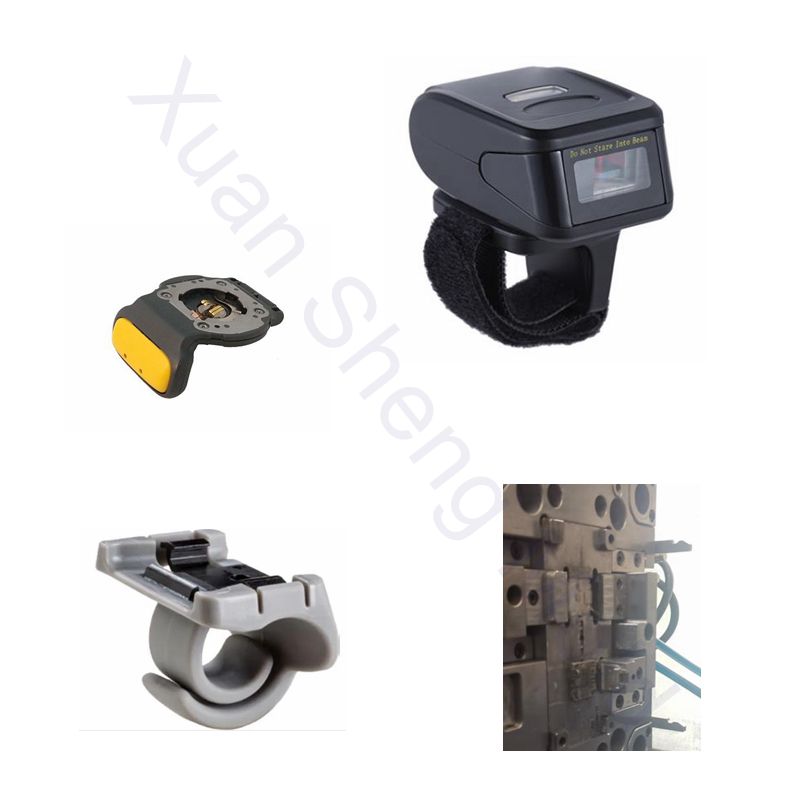

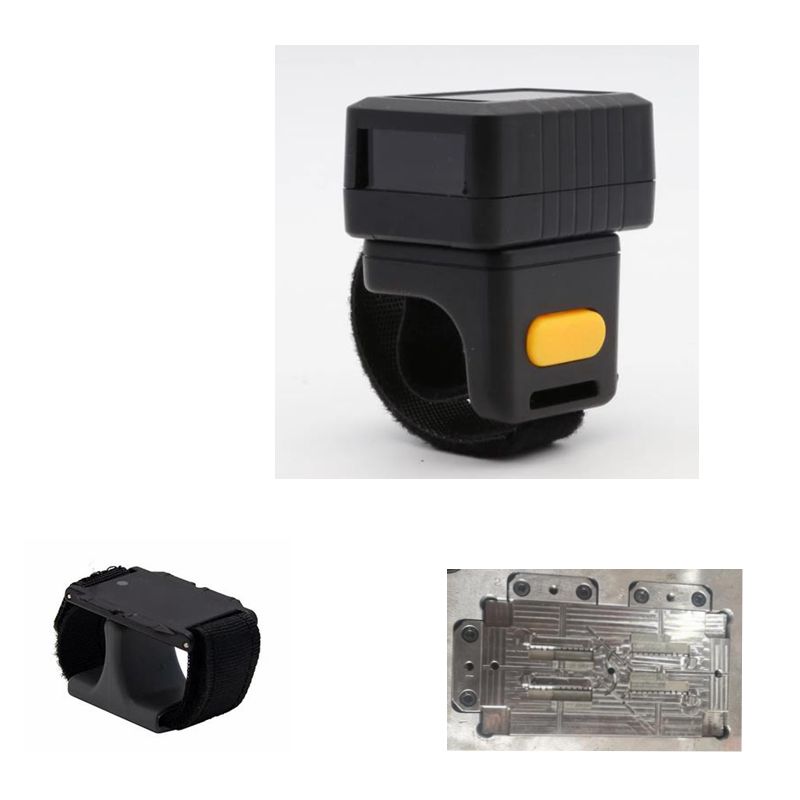

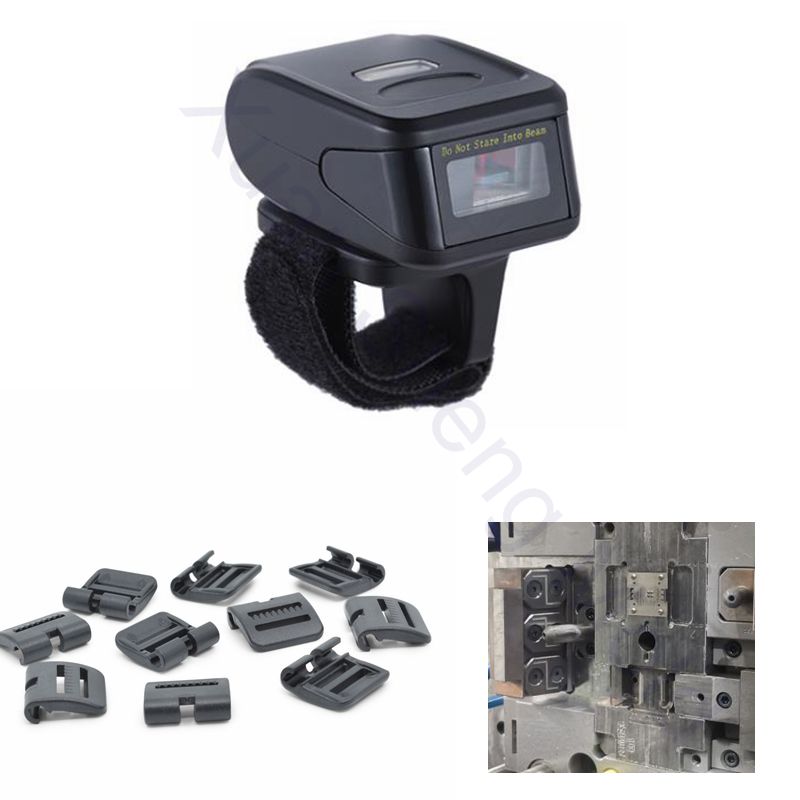

This product has 7 precision plastic parts. And this set of products is formed by 4 sets of precision plastic molds.

The holder have 3 parts, cover, bottom, and button, the scanner have 4 parts: top, bottom, battery cover, middle body.

I will introduce the frame precision plastic molds here.

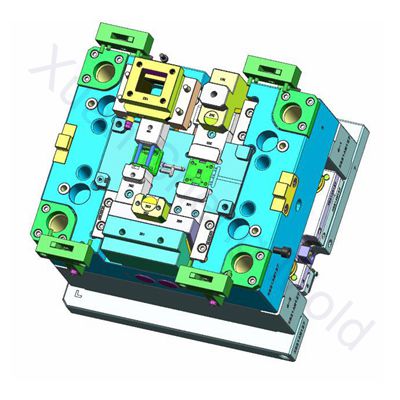

The frame material is PC+ABS, and its surface is texture. Its precision plastic mold has two cavities, and two sliders.

Its precision mold material is S136 which need done heat treatment. Its hardness is HRC48~52.

The mold size is 300*300*310, and its weight is 172 kg.  This mold is a three-plate precision plastic mold.

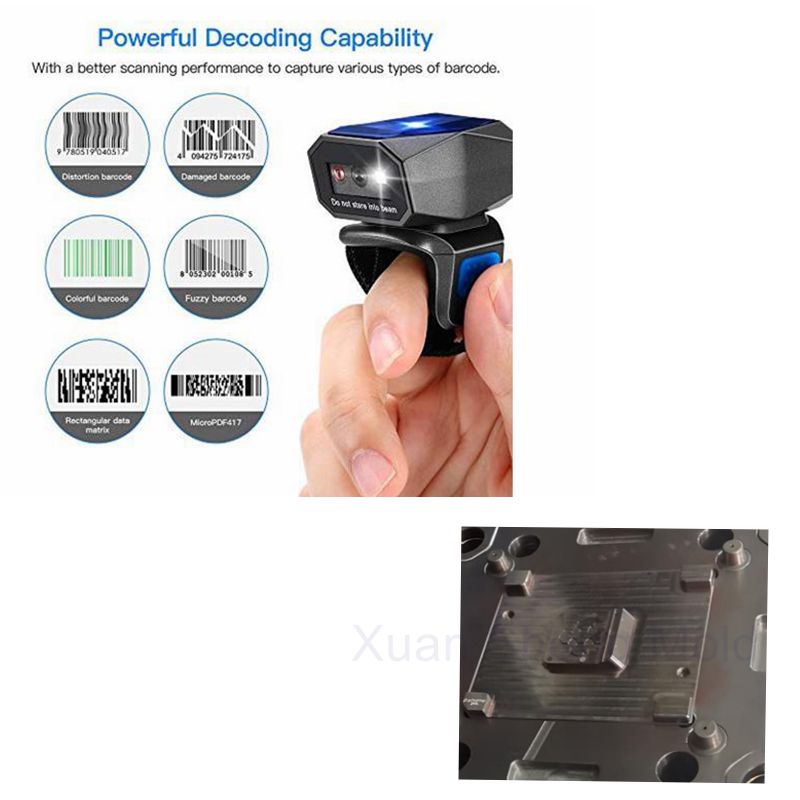

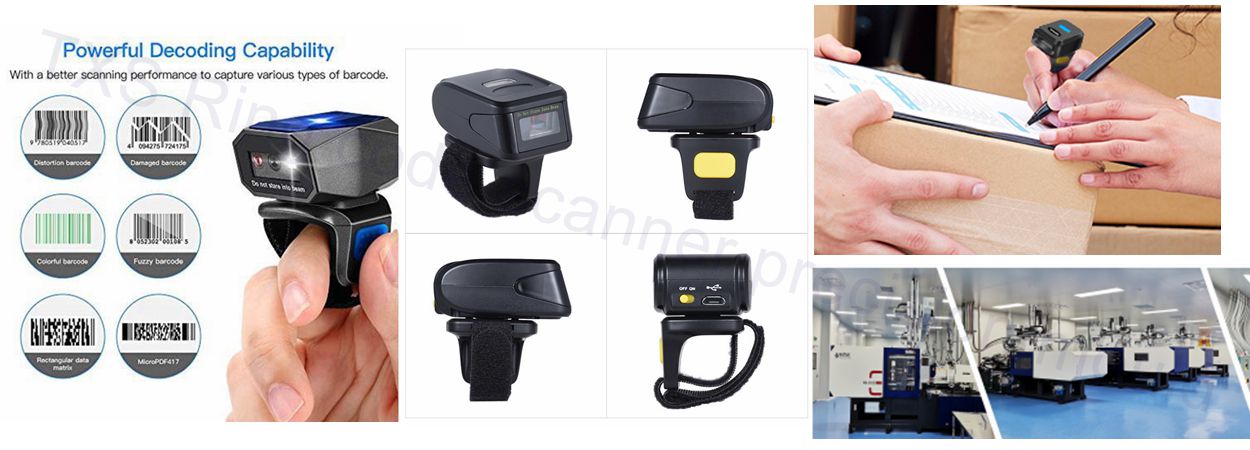

This product is very widely used. When sending express delivery, shopping malls, hotels and other places.

Our company has a very completely team. We can provide the product ODM design, finished product assembly services.

We have world-class processing equipments and detecting equipments.

Hope to provide better service to you.

Thank you.
