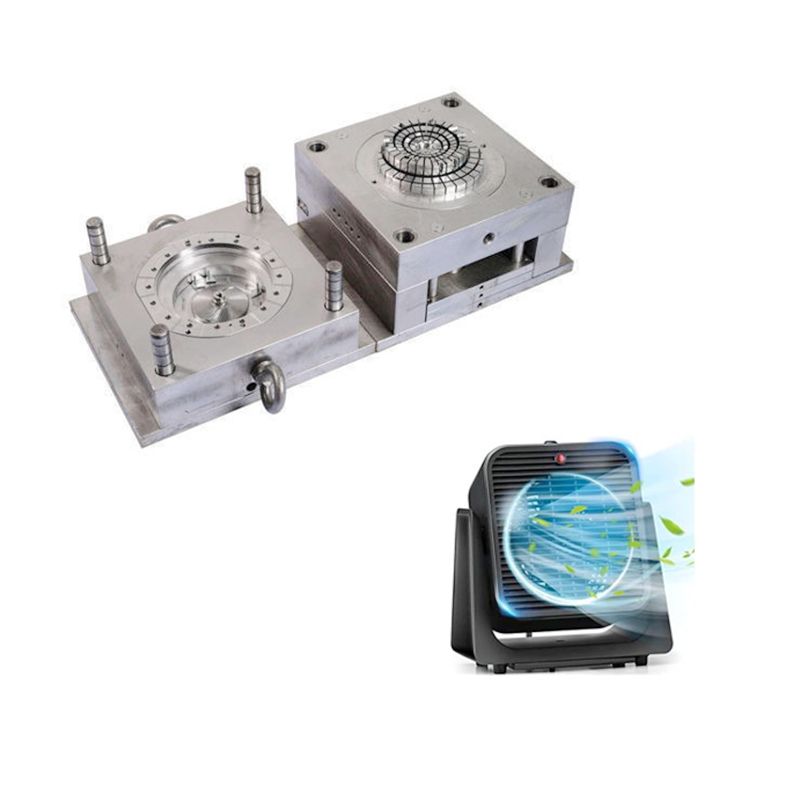

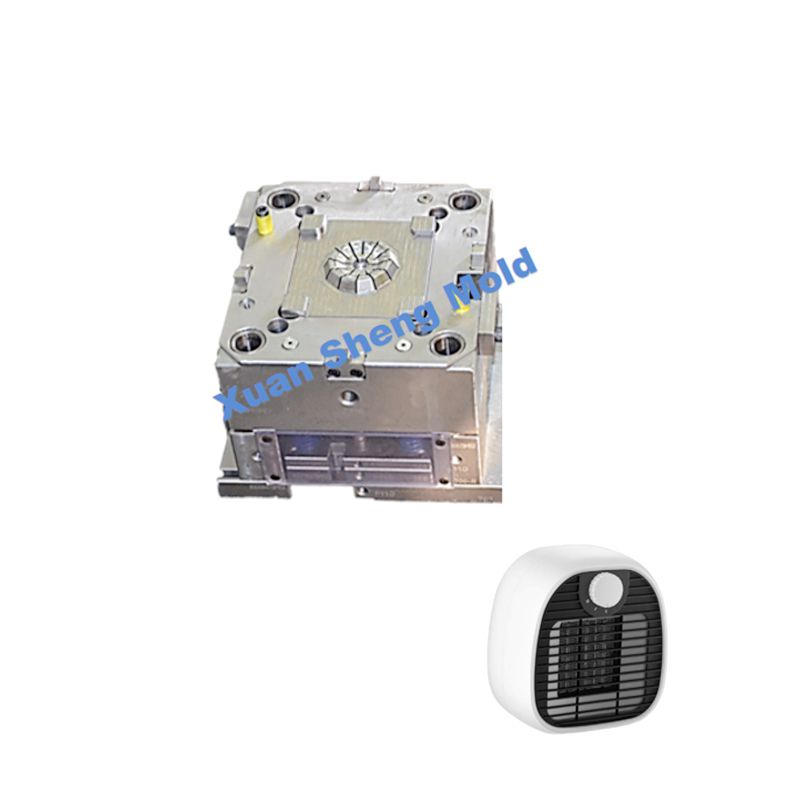

Heater fan precision mold

TAIWAN technology professional make plastic heater fan precision mold of precision mould tools.

This kind of product has four precision mould tools. The material of the shell part is ABS, the nails and

rotor parts of the product are PA6+GF30.

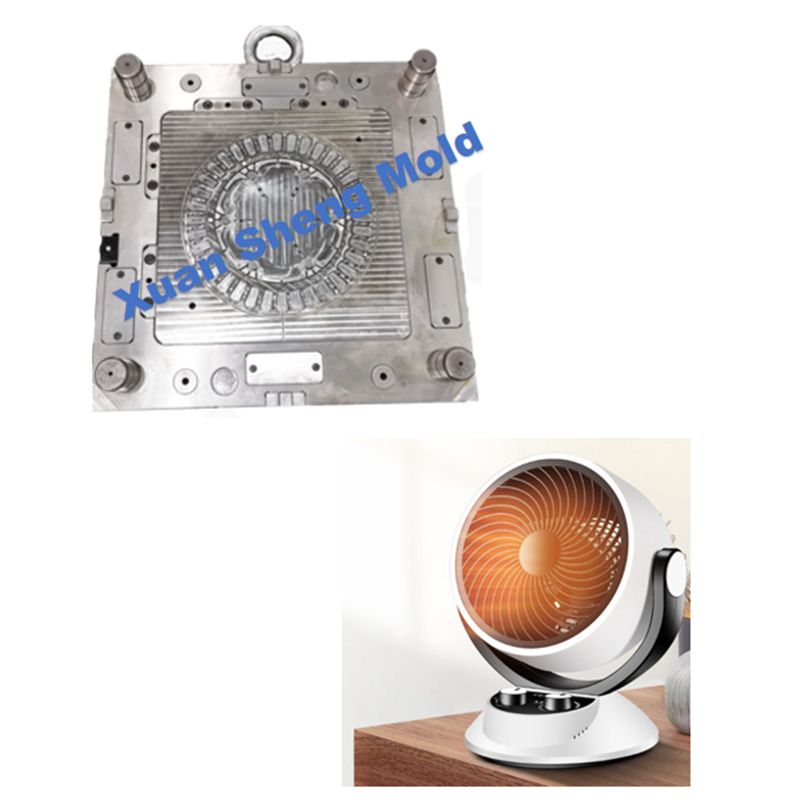

The precision mould tools of shell mold cavity is 1+1. The mold material is NAK80 and the core surface is texture.

The mold shots can reach 300k. This mold has hot runner system because the product is too high, use hot runner

system can reduce the waste plastic material. The mold size is 450*500*480 and the mold weight is 520KG.

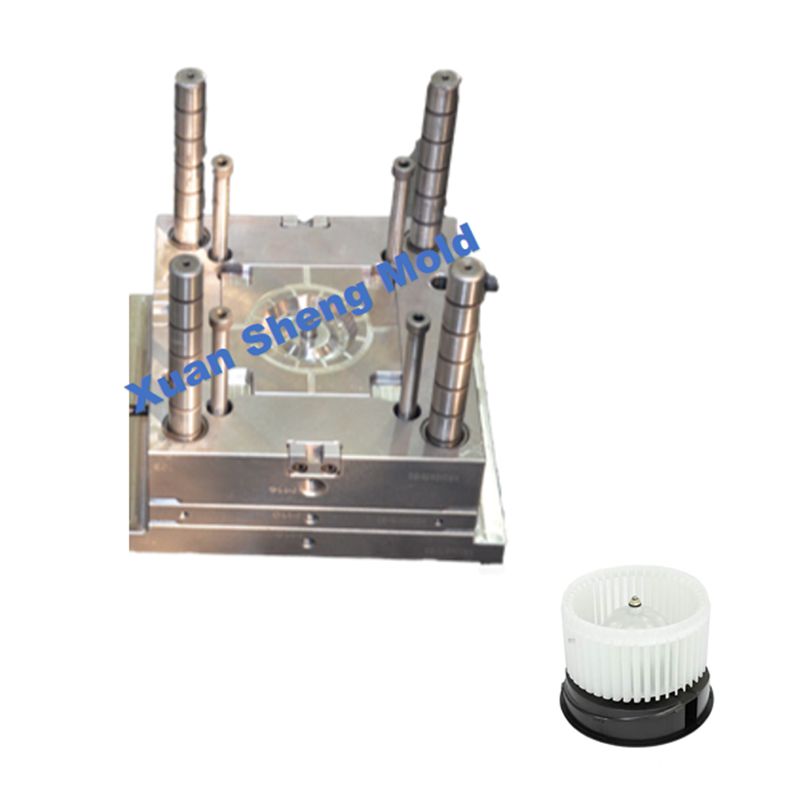

The precision mould tools of rotor part mold cavity is 1*2. The mold material is S136 and the core surface is

polished. The mold shots can reach 500k. This mold has a hot runner system. The mold size is 450*450*450 mm.

The most important thing about this set of molds is to ensure the balance of the product.

We have world-class measuring equipment for measuring every part of precision mould tools.

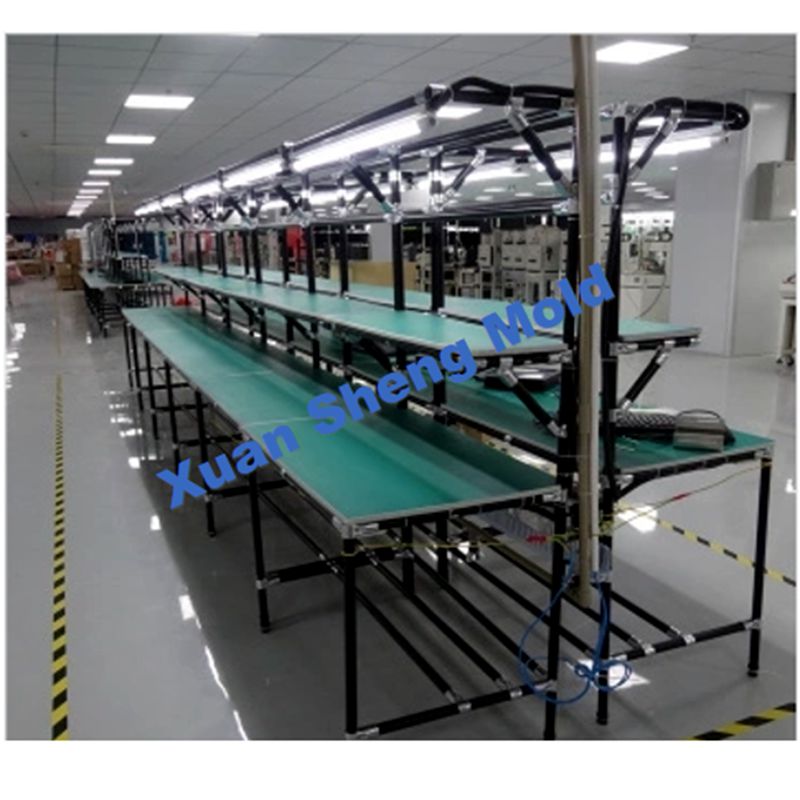

Our company also has an advanced assembly line. Can provide you with ODM design and OEM injection moulding

of the whole set of products.

Hope to provide you better service.

Thank you.
