Auto battery container lid mold

Taiwan's technology make plastic Auto battery container lid mold and automotive injection molding

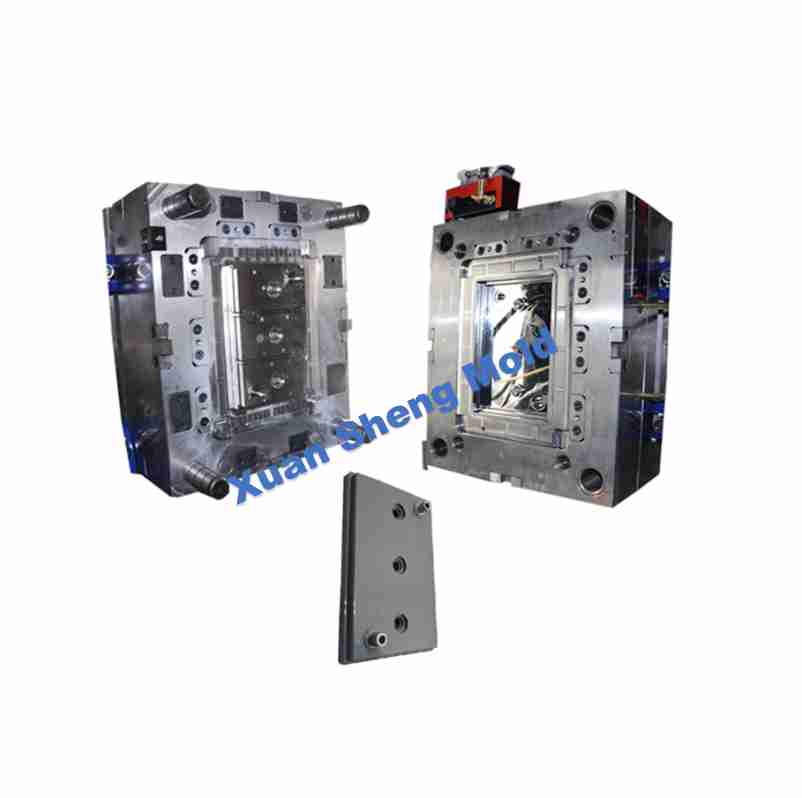

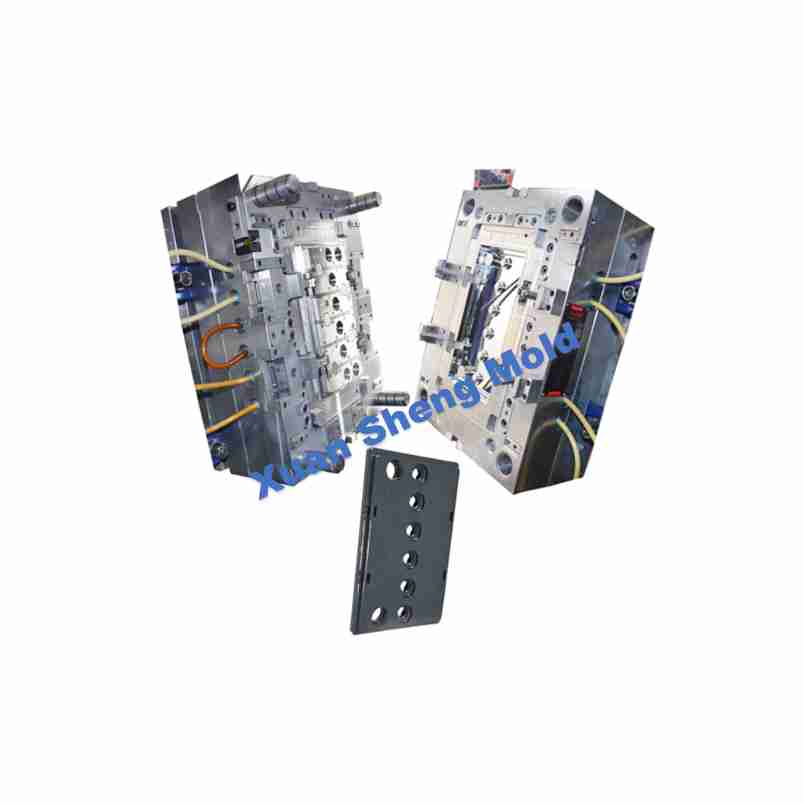

This is the plastic Auto battery container lid injection mold.The mold has only one open needle point hot runner.

The material of the mold is 1.2344, and each insert of the back mold core is spliced.

This mold size is 500*550*525mm and its weight is 545kg.Its hot runner system is YUDO.

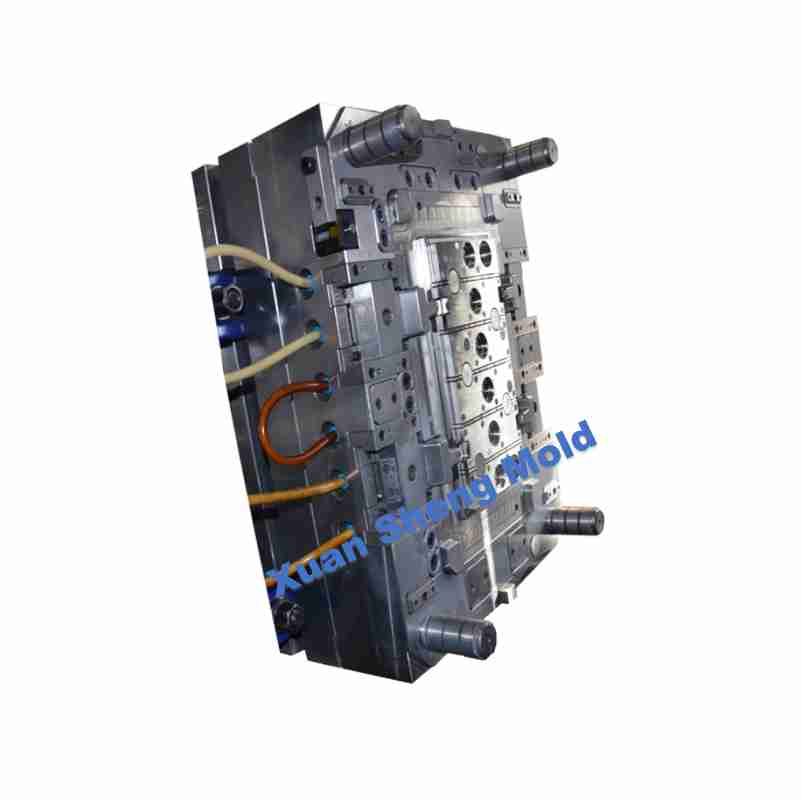

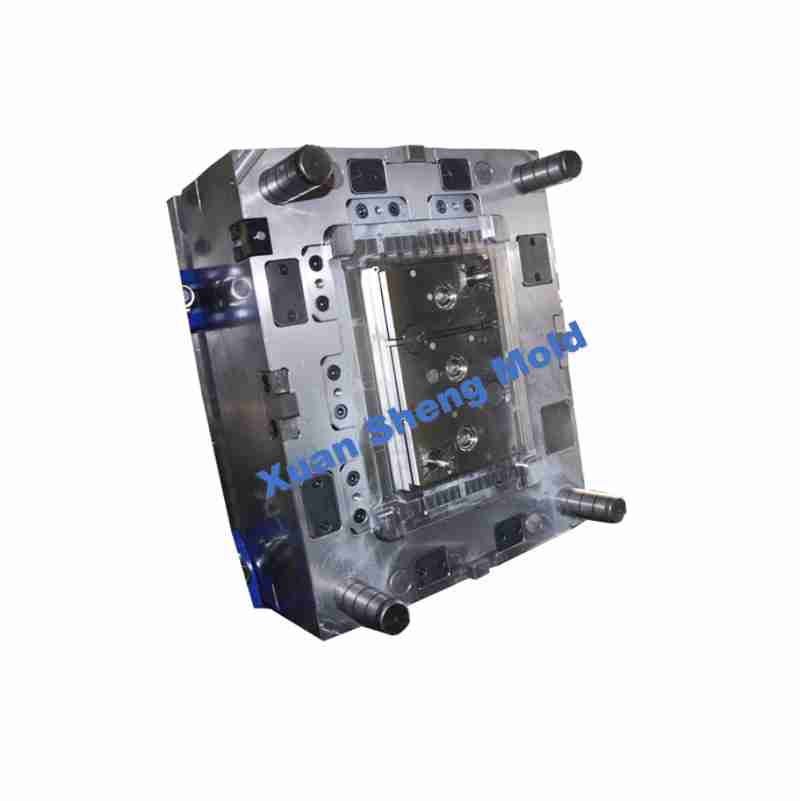

This set of molds only has an open nozzle. All the inserts of the back mold are inlaid and assembled.

This is conducive to processing and product exhaust during injection molding.

The material of the front mold core is 1.2344. mirror polished. Haitian 280T plastic injection molding machine

is used for injection molding. The injection molding cycle is about 35S.

In this way, the number of mold shot can reach 1000K.

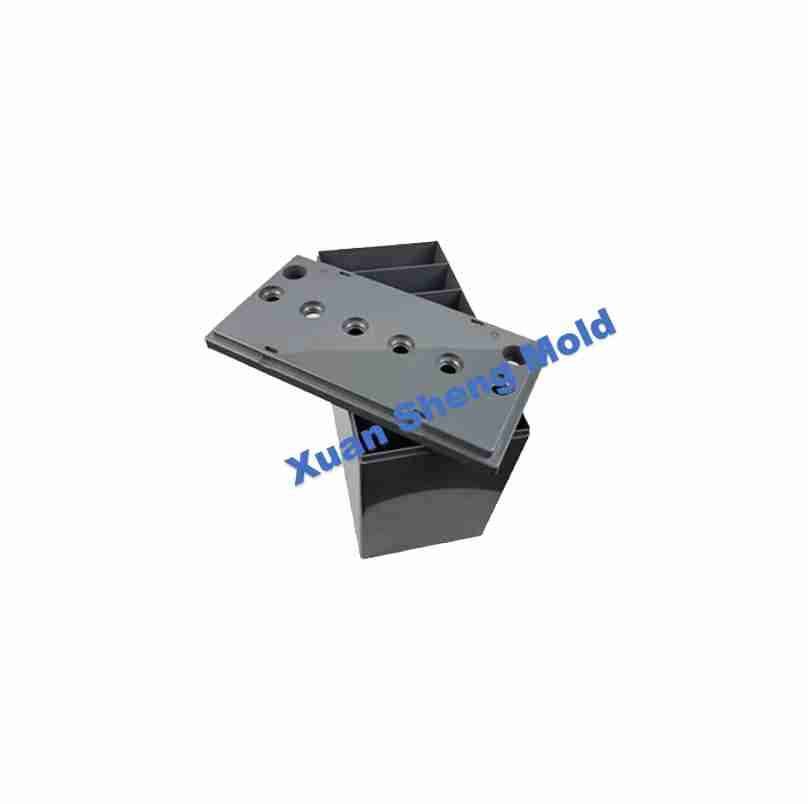

The material of the product is PC+ABS. It is necessary to pay attention to the external dimensions of the

product during injection molding, because the battery cover must be matched with the battery box.

There should not be too much deviation in the external dimensions.

Looking foward to providing you with better service.
