Turn signal inner lampshade mould

Taiwan's technology make turn signal inner lampshade mould of automotive injection mold

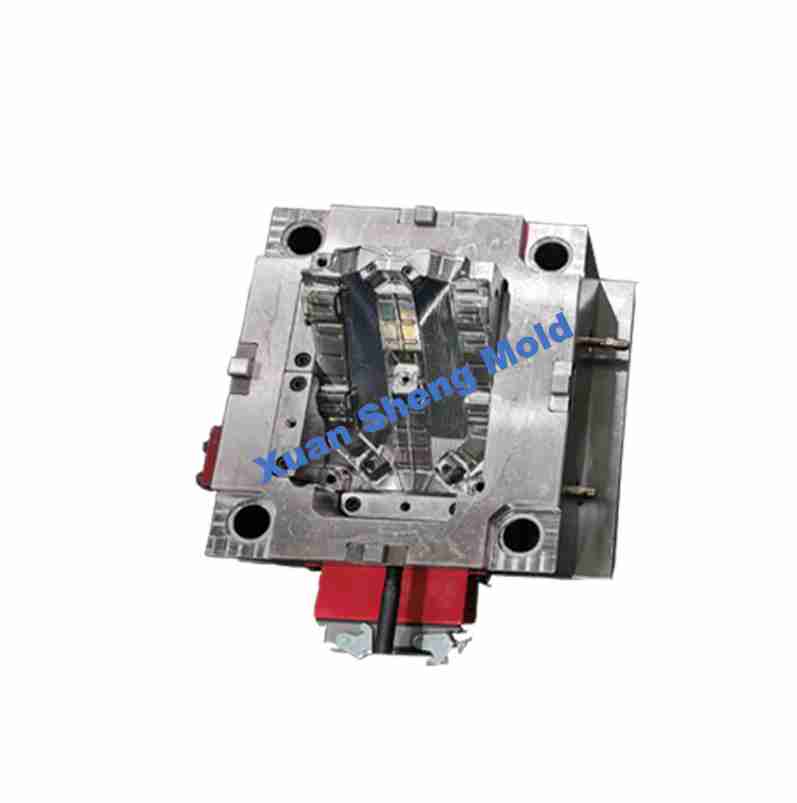

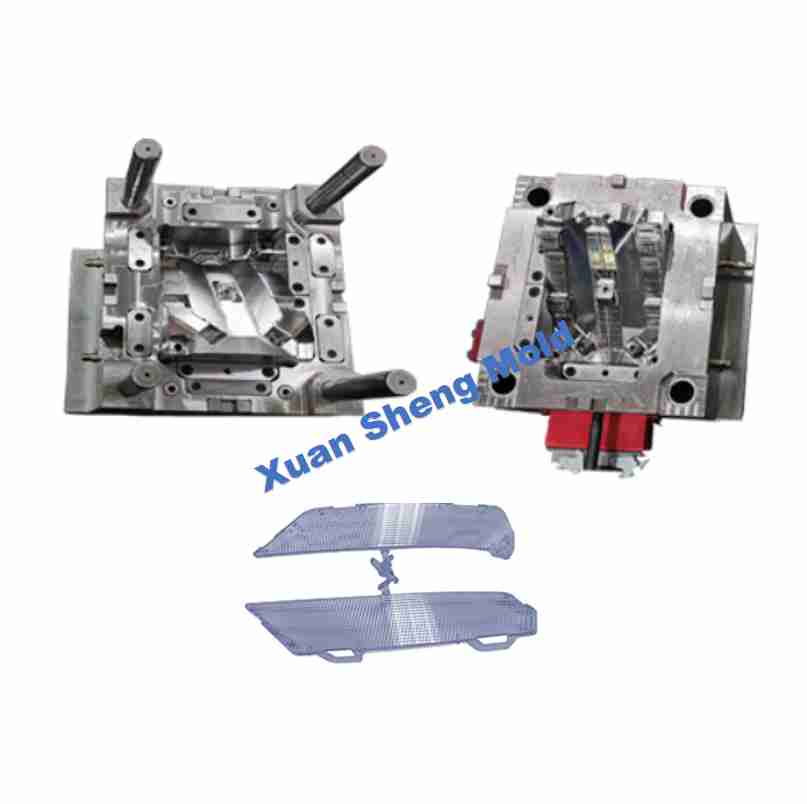

We have made the turn signal inner lampshade mould of automotive injection mold.

The mold has hot runner systum.Its brand is YUDO.The mold has two cavities.

The mold size is 450*450*496mm and its weight is 576KG.The mold injection moulding cycltime is 30S.

The mold insert material is 1.2344.

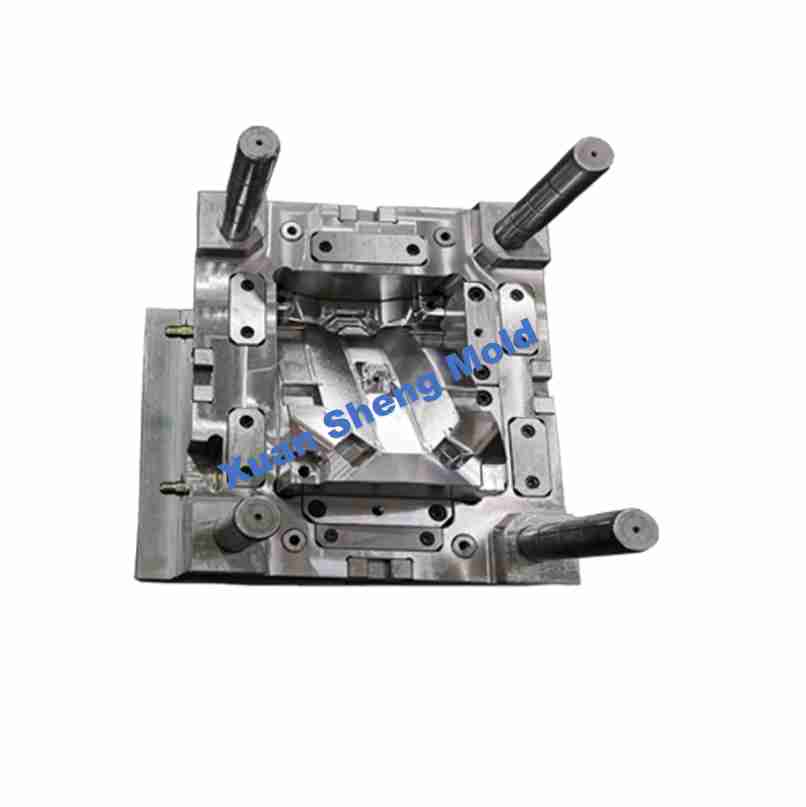

When processing the Core, Mikron high-speed CNC processing is used.

The maximum speed can reach 40,000 revolutions per minute.

This is because the diamond-shaped structure of core cannot be polished by hand.

If it is polished manually, traces will appear on the surface of the mold, which will affect the light transmission effect of the car lights.

Therefore, the cost of making this set of molds is also quite high.

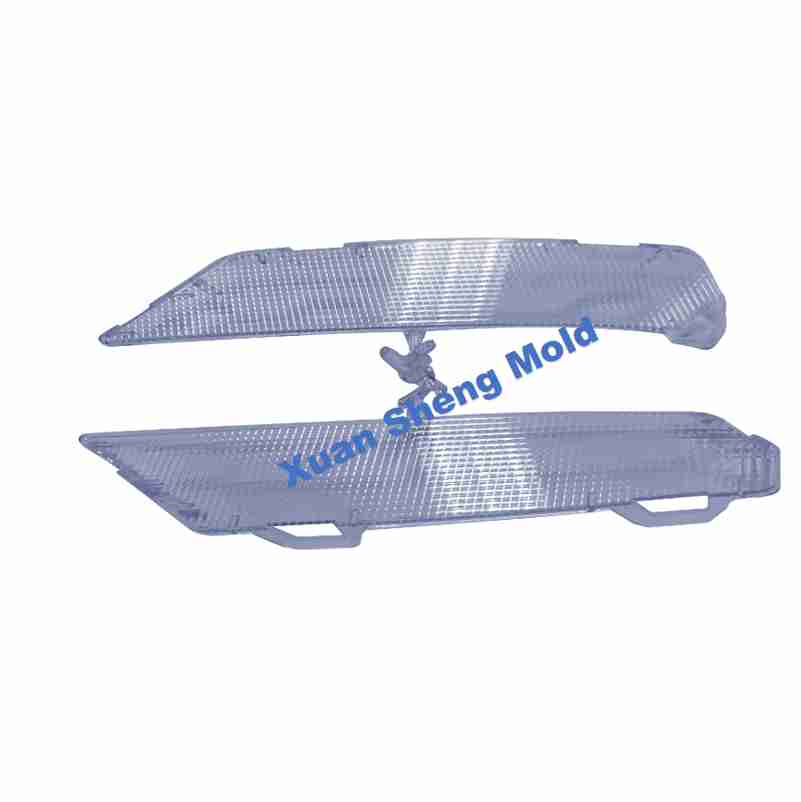

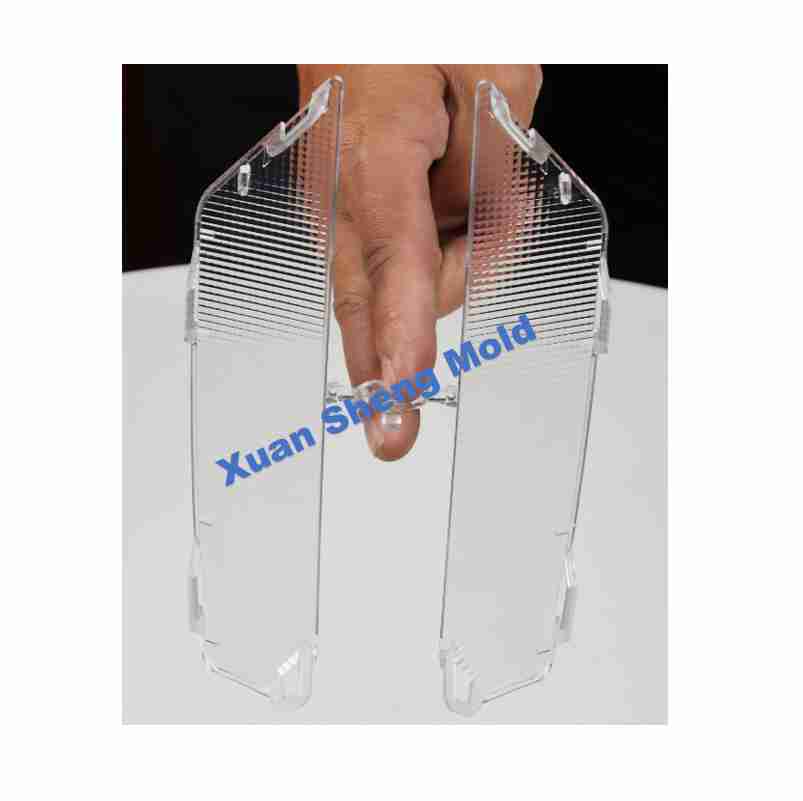

The material of the product is PC.During injection molding, the machine must be connected to the oil temperature

and the mold must be heated to ensure the gloss of the product.

Our company has also made molds for other parts of car lights.

Looking foward to providing you with better service!
