auto front fog lamp mould

Taiwan's technology make plastic auto front fog lamp mould and automotive injection molding

Our company has made the plastic auto front fog lamp mould and automotive injection molding.

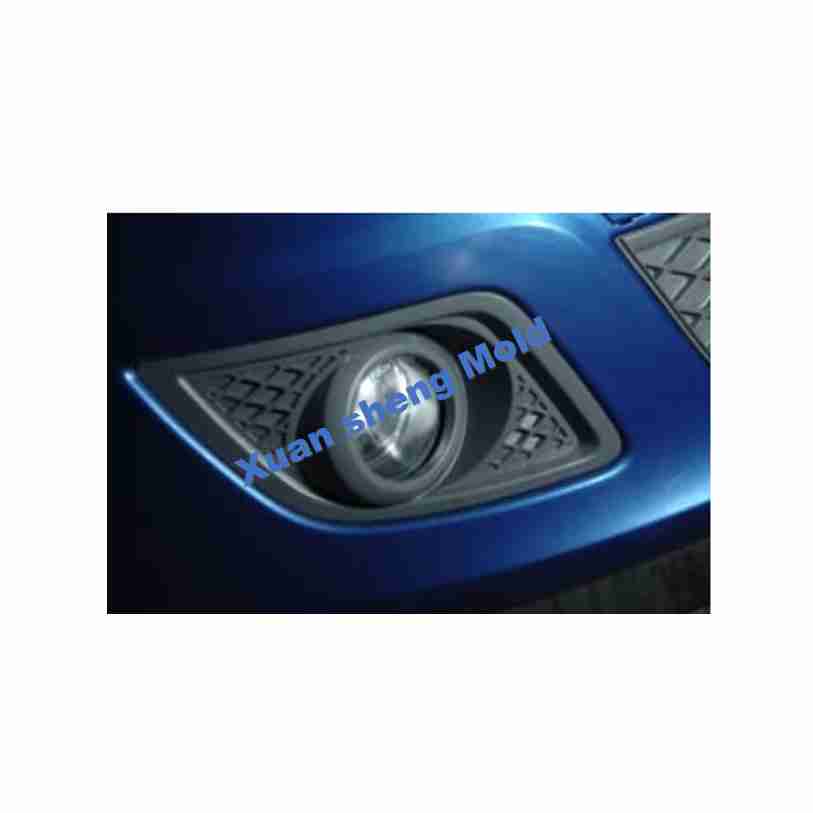

Automobile front fog lamps mainly include: fog lamp shade, lamp housing and outer shell.

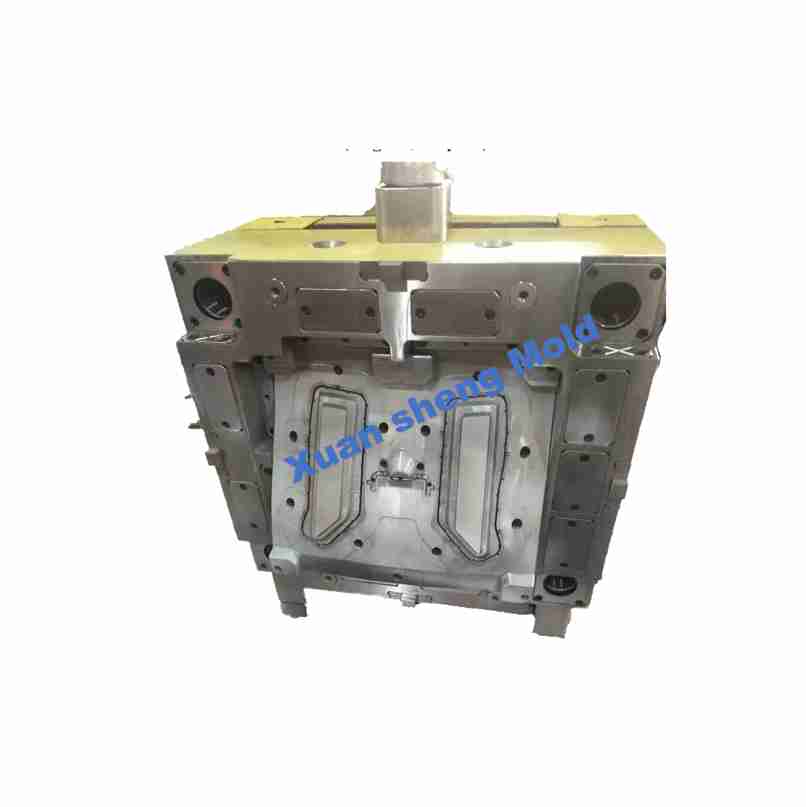

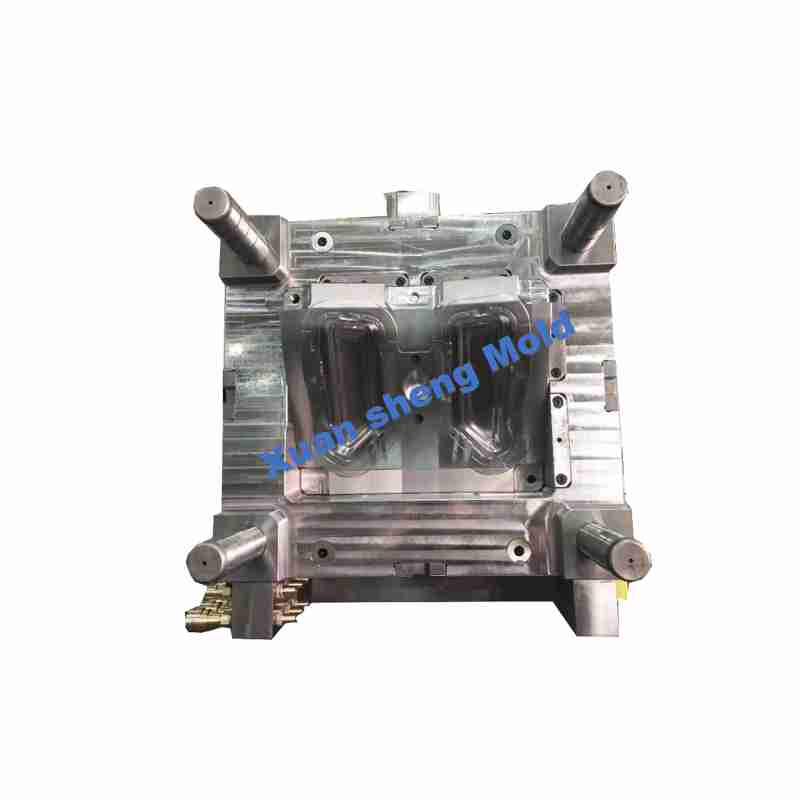

The material of the front fog lamp housing is PC, black. This mold uses YUDO's hot runner system.

The size of the mold is 550*650*650mm, and the weight of the mold is 1210KG.

The material of the car front fog lamp shade product is PC, which is transparent.

This mold uses YUDO's hot runner system. The size of the mold is 550*650*470mm, and the weight of the mold is 760KG.

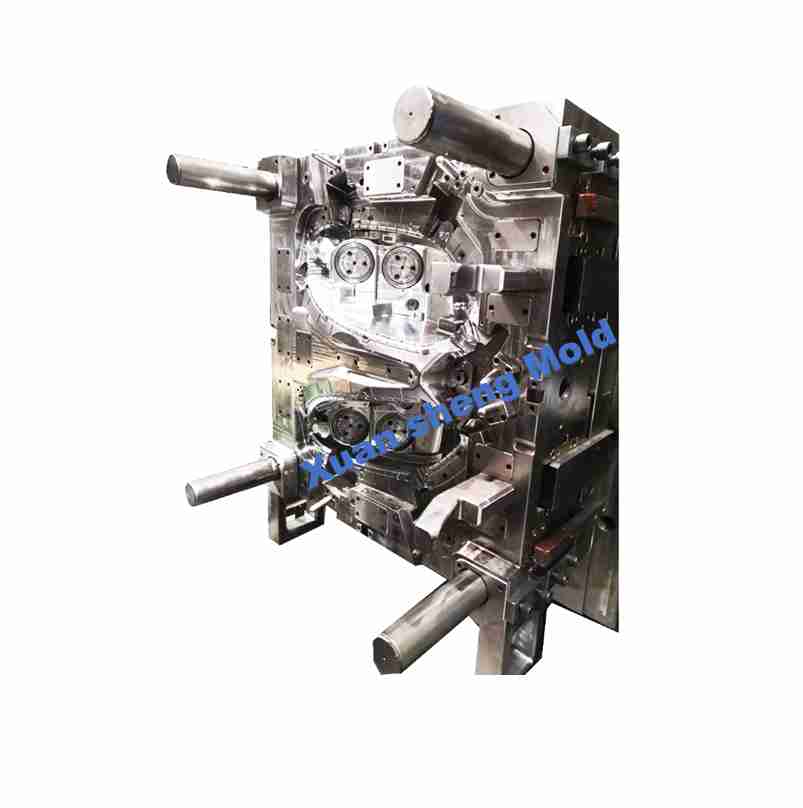

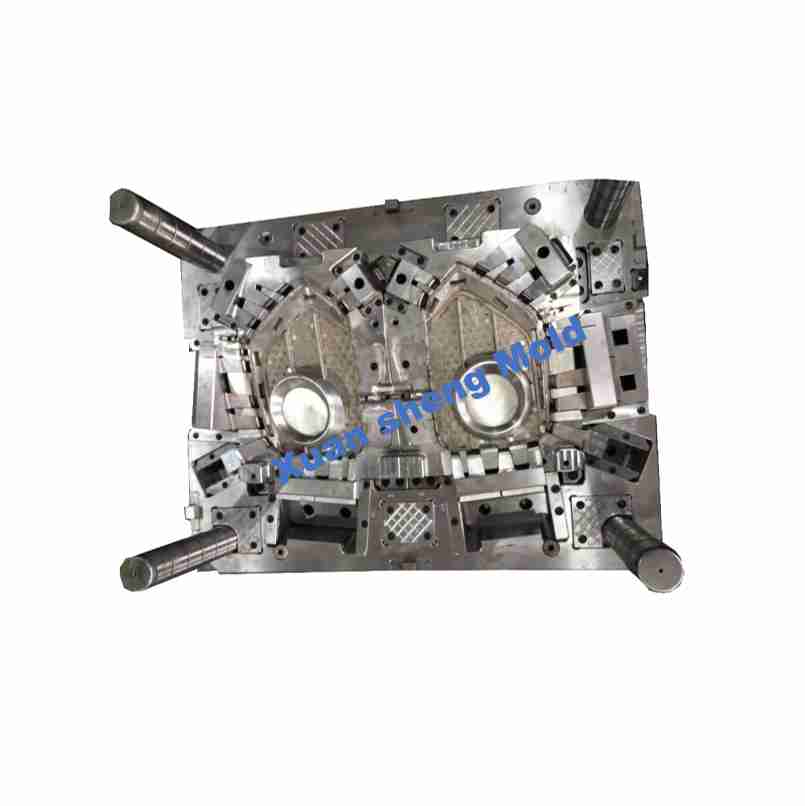

The material of the outer lamp shell of the automobile front fog lamp is PP+TD20, black.

This mold uses YUDO's hot runner system. The size of the mold is 650*850*550mm, and the weight of the mold is 1670KG.

The material of the mold core of the first two sets of molds is 1.2344.

The material of the mold core of the fog lamp outer lamp shell is 1.2738.

Looking foward to providing you with better service !
