Plastic caps high precision injection molding
| Product Name | Taiwan's technology does precision caps mold and high precision injection molding |
| Mold material | ASSAB Stavax 420,1.2311plating,S136.BeCu etc |
| Cavity | 48 Cav |
| Runner | Hot runner |
| Mold Base Brand | Hasco |
| Mold Life | 1,000,000 shots |
| Plastic Material | PE |
| Mold package | Wooden box |
| Tolerance | 0.02 mm |
Taiwan's technology does precision caps mold and high precision injection molding.
Our company made this precision caps mold has 48 cavities.

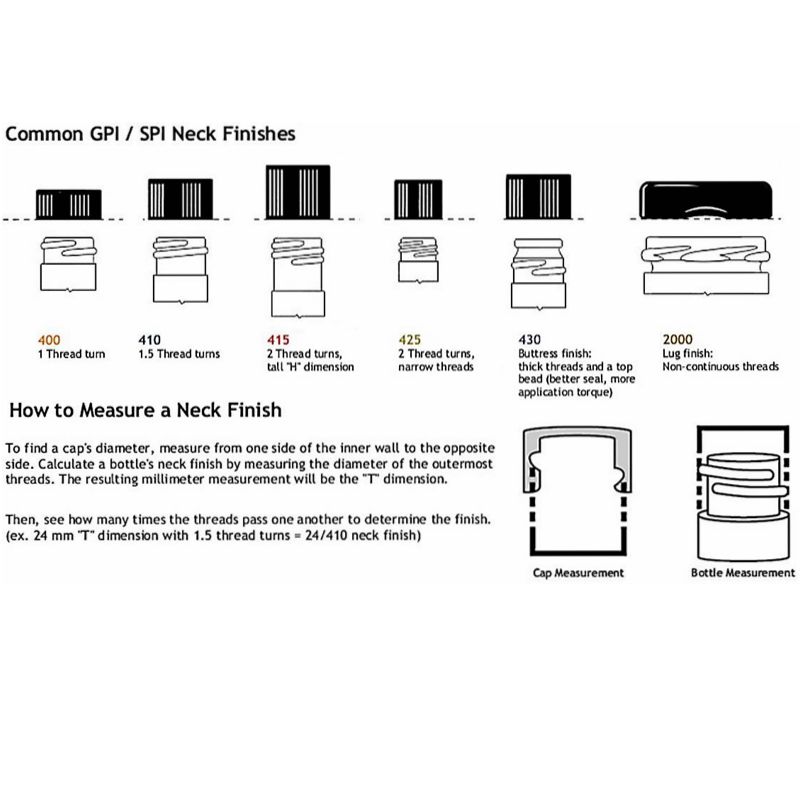

The specifications of the bottleneck are PCO 1810/1881/2925/3025.
Products are used in mineral water, juice, cosmetics, medicines, oil bottle caps.
Pressure of cold water machine: more than 4.6 ~ 8.3kgs/cm³.
Cold water export flow: 399 ~ 502 liters/minute.
Hot runner points : Germany Hotflex 48 points needle valve
Cav and core material: ASSAB Stavax 420 steel HRC51~52° BeCu HRC 40°
Moldbase： steel, P20 plating
The cycle time: 5.5s
The fastest in the world is to use Arburg injection molding machine, which can reach 2.1S.
After the bottle cap is filled, the automatic incision machine is required to cut the port of the product.
Our company can provide you with a complete solution.
Welcome your inquiry.
Thank you!
