contactless payment machine precision plastic mold

TAIWAN technology contactless payment machine precision plastic mold.

This kind of product has 25 pieces of precision plastic parts. They are molding by 7 sets precision plastic molds.

The accuracy of this product requires very high accuracy. If the product size is deviated or flawed in appearance,

it will affect the customer's use.

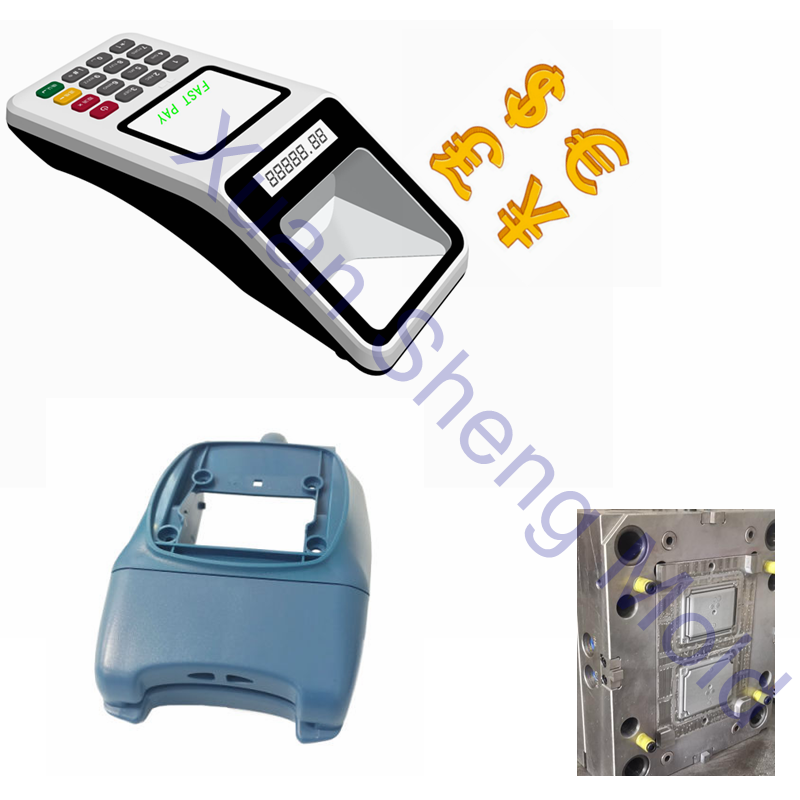

I will introduce the housing precision plastic mold here.

This mold cavity surface is texture, and mold material is NAK80.

The precision plastic has one cavity and 8 lifters, which material is 8407 that has done heat treatment HRC50~52°

This mold size is 350*450*380 mm, and its weight is 430 kg.

The upper cover and lower cover must be designed the art groove, and the size of the upper cover is larger

than the size of the lower cover. Avoid scratching in this way.

All precision plastic parts of this product has done the mold flow analysis. This can ensure the size of each

product and reduce the production of bad products.

Welcome your inquiry.

Thank you.
