plastic electrical parts mold

 Taiwan's technology make plastic electrical parts mold and plastic injection molding

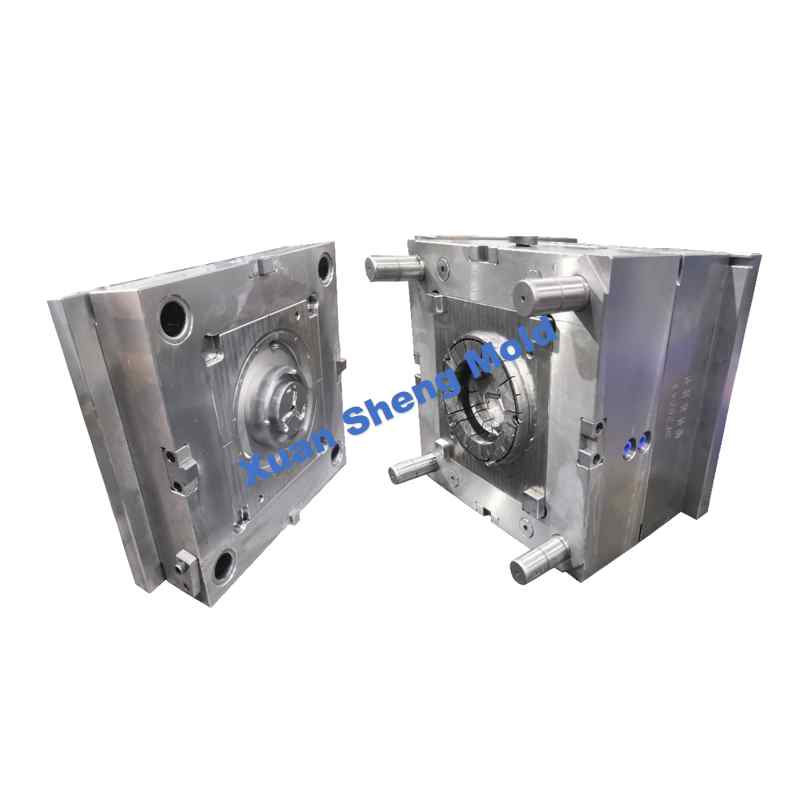

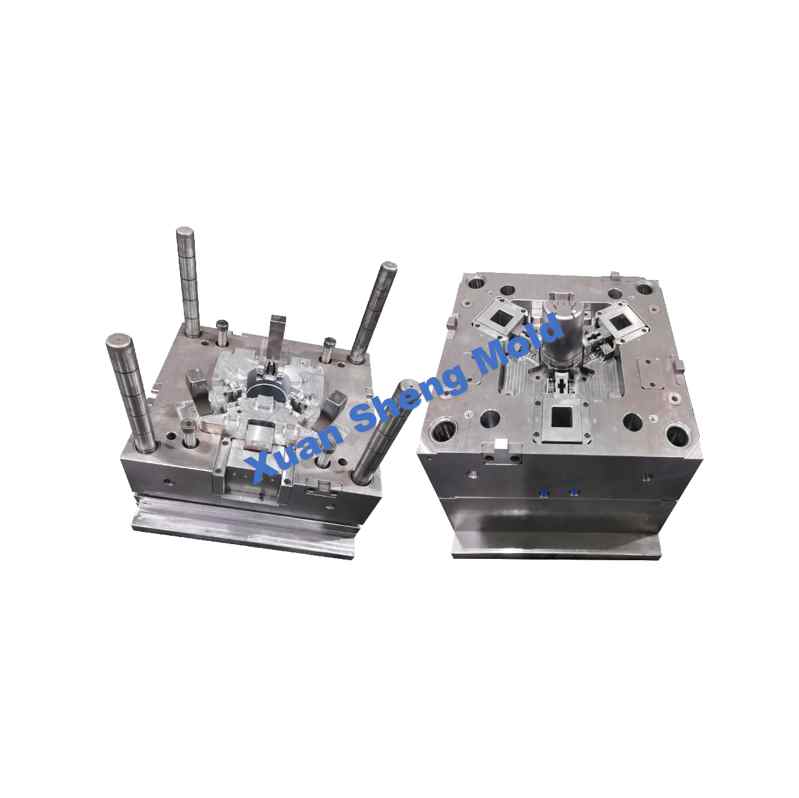

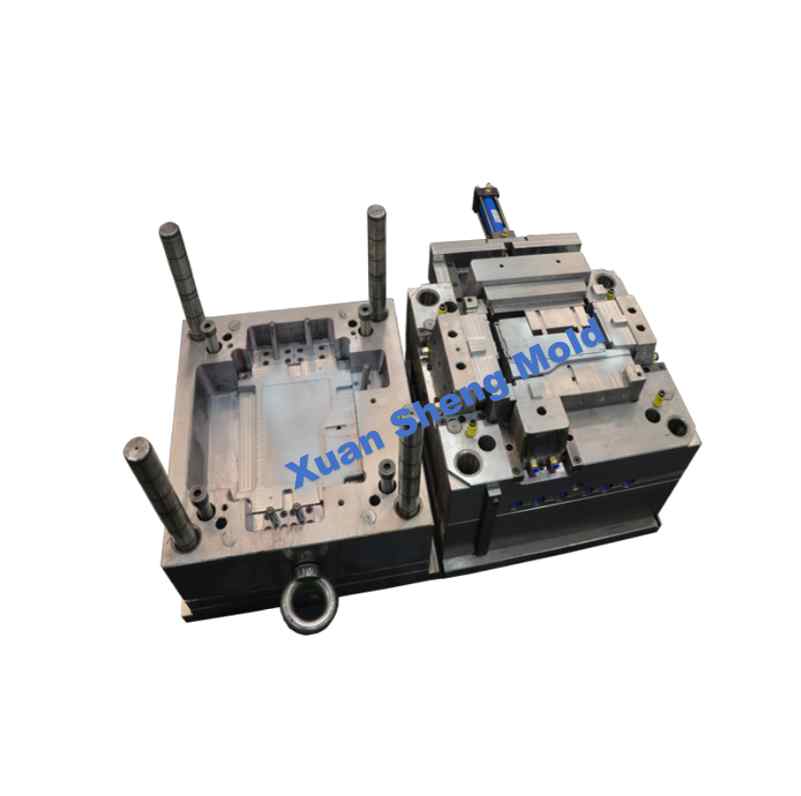

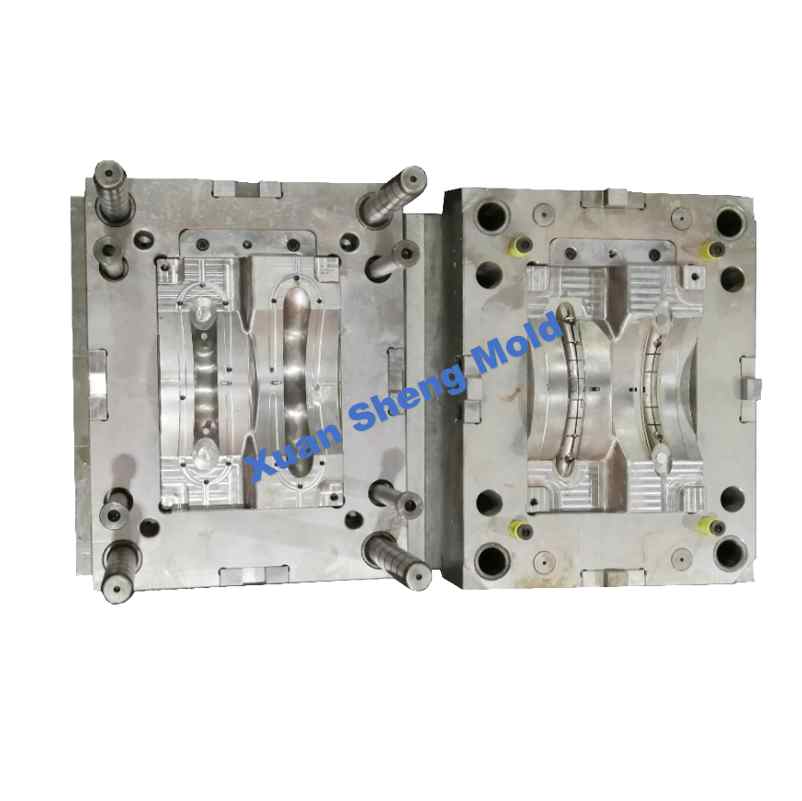

Our company has done many kinds of plastic electrical parts injection molds.Such as plastic UV disinfection purifier,

underwater sweeping robot, electronic cat eye, etc.

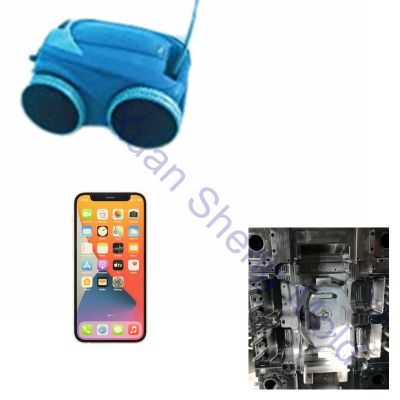

Underwater robot mold I mainly introduce the display box mold. The material of the product is ABS.

This set of molds has three oblique sliders, each of which has two sliders in different directions.

So the mold opening sequence is to first draw out 6 small sliders in different directions, and finally draw out the large slider.

This mold is a cold runner mold. The size of the mold is 550*500*565mm, and its weight is 1632kg.

The appearance of such products generally requires a textured surface or a very smooth surface.

The product appearance requirements are very strict, and there should be no scratches on the surface.

At the same time, there can be no gaps in the matching place of the product, which will affect the use of the product.Of course,

the internal mechanical parts of the product must also meet the assembly dimensions.

Looking foward to providing you with better service.
