Motor rotor overmold insert molding

                               Motor rotor overmold insert molding

Due to client's injection molding machines are vertical injection molding machine, so we design the overmold

by 1 cavity mold combine with 2 cores mold, Xuansheng technology rich experience on the rotor overmold and

insert molding technology.

Let me introduce this precision motor rotor overmold here.

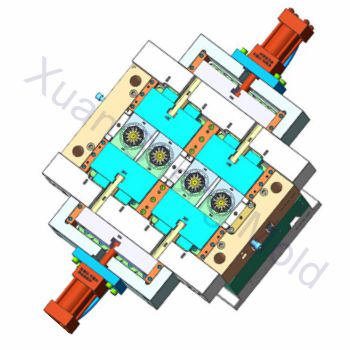

This precision overmold has hot runner system and its brand is YUDO. This overmold has 4 cavities and

two large sliders. This overmold large slider driven by the oil cylinder. There are total 6 oil cylinders.

This overmold material is SKD61. Its size is 1020*610*500 mm and its weight is 696 kg.

We have the partner who make the stamp precision mold.

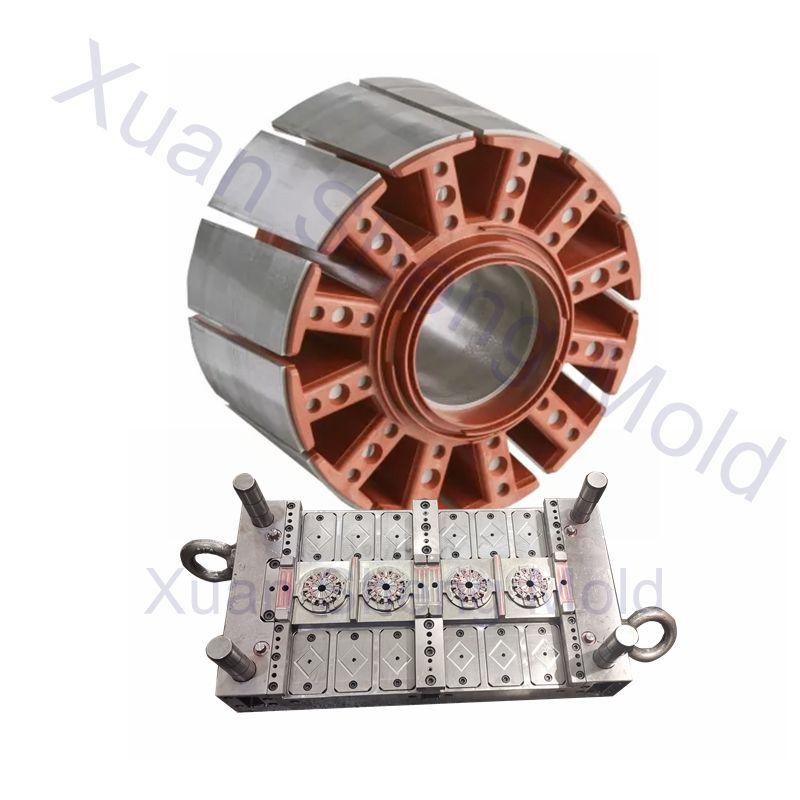

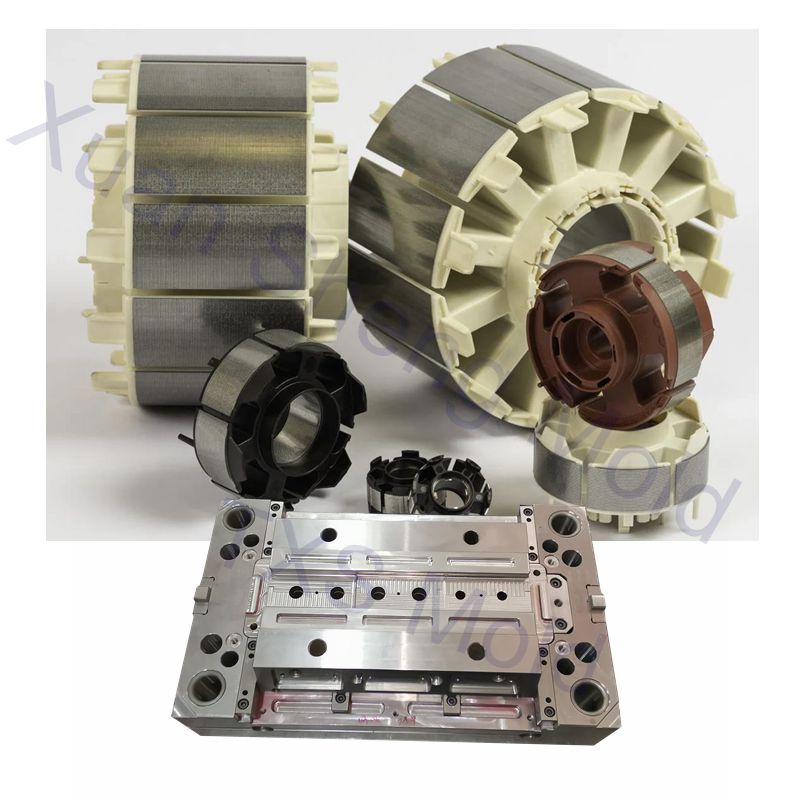

When does the motor rotor overmold insert molding, we should set the silicon steel insert

into the overmold first.

In order to ensure the quality of the product, this set of overmold must be well matched with all

silicon steel inserts. Otherwise, the risk of compressive over mold or products will produce flash.

Our company has precision mold processing equipments and world-class brand equipments.

Hope to cooperation with you.

Thank you.
