Handheld barcode scanner precision moulding and moulds

           Handheld barcode scanner precision moulding and moulds

We have done the handheld barcode scanner precision moulding and moulds.

This kind of product, mainly made of seven plastic parts.

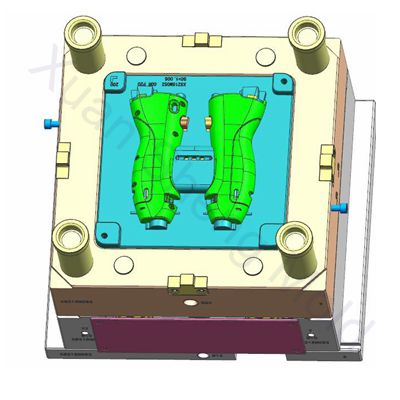

I will introduce the handle part precision mold here. The product material is PC+ABS, and its surface is texture.

Its mold is a cold runner mold, and the cavity is 1+1. This precision mould material is 718H.

The mold size is 400*350*340, and its weight is 385 kg.

When this type of product is designed, we will add beauty grooves. Avoid the product from the product's size

difference during assembly and affect the product's use function.

There are many ribs on the mold core. So we should design many precision mold inserts.

The first is for mold process easier, the other one is for the mold excess vents.

We have a very completely team. We can provide the product ODM service and assembly service.

We also have the world-class brand processing equipments and detecting equipments.

So we are focus on precision moulding and moulds.

Welcome your inquiry.

Thank you.
